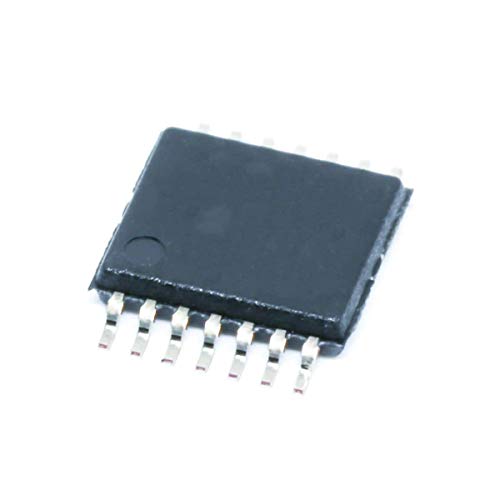

Texas Instruments TPS61500PWPR

mpnTPS61500PWPR
brandname: Texas Instruments
manufacturername: Texas Instruments

TPS61500PWPR

Brand: Texas Instruments
PartNumber: TPS61500PWPR
Model: TPS61500PWPR
PackageQuantity: 1
Manufacturer: Texas Instruments
Label: Texas Instruments

Attributes

Key	Value
Alternate Part No.	595-TPS61500PWPR
Application	for LED applications
Applications	Backlight
ASIN	B01BD0OYRA
Base Product Number	TPS61500
Brand	Texas Instruments

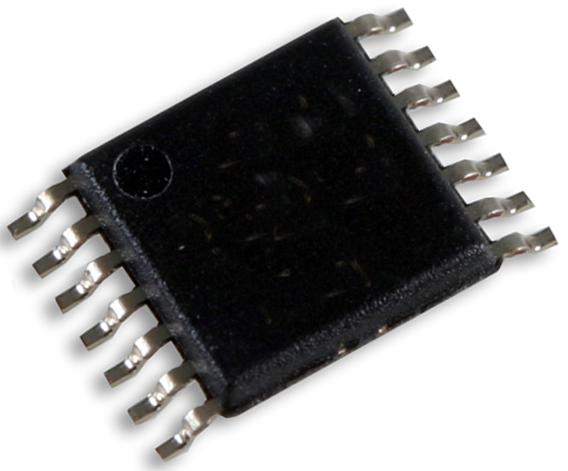

Case	HTSSOP14
Category	Integrated Circuits (IC.
Current - Output / Chan.	3A (Switch)
Description	IC LED DRV RGLTR PWM 3A.
Detailed Description	LED Driver IC 1 Output .
Digi-Key Part Number	296-24014-2-ND - Tape &.
Dimming	Analog, PWM
Frequency	200kHz ~ 2.2MHz, 2.2MHz
Input Voltage	18 V
Input voltage	2.9...18V DC
Integrated circuit feat.	PWM
Internal Switch(s)	Yes
Item model number	TPS61500PWPR
Kind of integrated circ.	DC/DC converter
Kind of package	reel,
Manufacturer	Texas Instruments
Manufacturer Part No.	TPS61500PWPR
Manufacturer Product Nu.	TPS61500PWPR
Manufacturer Standard L.	20 Weeks
Maximum Operating Tempe.	+ 85 C
Maximum Supply Current	3.5 mA
Mfr	Texas Instruments
Minimum Operating Tempe.	- 40 C
Mounting	SMD
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of channels	1
Number of Outputs	1, 1 Output
Operating Frequency	2.2 MHz
Operating Temperature	-40?C ~ 85?C (TA)
Operating temperature	-40...85?C
Output current	3A
Output Current	3 A
Output Type	Current Mode
Output voltage	2.9...38V DC
Package	Tape & Reel (TR)
Package / Case	14-PowerTSSOP (0.173", .
Package/Case	HTSSOP-14
Packaging	Reel
Part Status	Active
Product	LED Lighting Drivers
Product Category	LED Lighting Drivers
Product Status	Active
Series	-, TPS61500
Supplier Device Package	14-HTSSOP
Topology	boost, Step-Up (Boost)
Type	DC DC Regulator, LED Dr.
Type of integrated circ.	PMIC
Unit Weight	58 mg
Voltage - Output	2.9V ~ 38V
Voltage - Supply (Max)	18V
Voltage - Supply (Min)	2.9V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Win Source	TPS61500PWPR	0.856	60	20360		Texas Instruments	0.856 @ 60
TME	TPS61500PWPR	1.59	1	10		TEXAS INSTRUMENTS	1.59 @ 10
Newark	52AH7753	2.02	1	10		TEXAS INSTRUMENTS	2.02 @ 10
Hotenda	H2667792	2.646	1	13182		Texas Instruments	2.646 @ 10
Digi-Key	1985029	3.019	1	6001		Texas Instruments	3.019 @ 10
swatee.com	TPS61500PWPR	5.34	1	881		Texas Instruments	5.34 @ 10
AmazonTP	B01BD0OYRA	43.48	1	10	15	Texas Instruments	43.48 @ 10
Amazon	B01BD0OYRA	43.48	1	10		Texas Instruments	43.48 @ 10
