mpn:
brand:
manufacturer:
MPN:
Weight:
0.044
Weight:
0.044 LB
Preferred Price:
7.41
Price:
7.41
Min Simple Price:
3.27
Absolute Min Price:
5.65
Min Price:
5.65
qty:
1014
simpleSku:
MDYxNQ:::TPS74401RGWR
sku:
MDYxNQ::X2:TPS74401RGWR@y0
condition:
11
seller:
Newark
amzMan:
texas instruments
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Base Product Number | TPS74401 |
| Case | VQFN20 |
| Category | Integrated Circuits (ICs) |
| Control Features | Enable, Power Good, Soft Start |
| Current - Output, Output current | 3A |

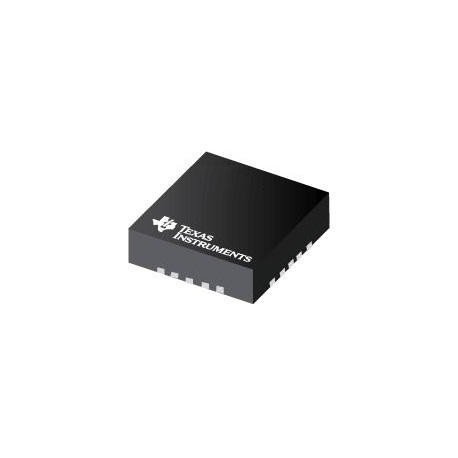

| Description | IC REG LINEAR POS ADJ 3A 20VQFN |
| Detailed Description | Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 20-VQFN (5x5) |
| Digi-Key Part Number | 296-27070-2-ND - Tape & Reel (TR) |
| Input voltage | 1.1...5.5V |
| Kind of package | reel, |
| Kind of voltage regulator | adjustable, |
| Manufacturer Product Number | TPS74401RGWR |
| Manufacturer Standard Lead Time | 6 Weeks |
| Manufacturer, Mfr | TEXAS INSTRUMENTS |
| Mounting | SMD |
| Mounting Type | Surface Mount |
| Number of channels, Number of Regulators | 1 |
| Operating Temperature | -40?C ~ 125?C |
| Operating temperature | -40...125?C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Output voltage | 0.8...3.6V |
| Package | Tape & Reel (TR) |
| Package / Case | 20-VQFN Exposed Pad |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| PSRR | 73dB ~ 50dB (1kHz ~ 800kHz) |
| Series | - |
| Supplier Device Package | 20-VQFN (5x5) |
| Tolerance | ?1% |
| Type of integrated circuit | voltage regulator |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage drop | 0.115V |
| Voltage Dropout (Max) | 0.24V @ 3A |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Newark | 77AH4915 | 3.27 | 3.27 | 1 | 1398 | TEXAS INSTRUMENTS | 3.27 @ Qty: 1+ | ||
| TME | TPS74401RGWR | 7.81 | 7.81 | 1 | In Stock | TEXAS INSTRUMENTS | 7.81 @ Qty: 1+ | |||
 | Digi-Key | 1673022 | 8.448 | 8.448 | 1 | 1014 | Texas Instruments | 8.448 @ Qty: 1+ |
