Texas Instruments TXS0104ERGYR

B00MMVMZ9E

TXS0104ERGYR

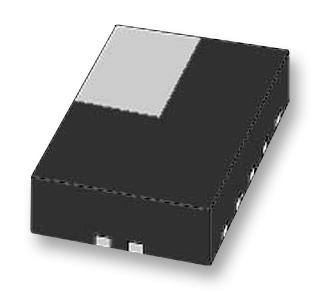

TXS0104ERGYRzoom

Attributes

Key Value
Alternate Part No.595-TXS0104ERGYR
Base Product NumberTXS0104
BrandTEXAS INSTRUMENTS
CaseVQFN14
CategoryIntegrated Circuits (IC.
Channel TypeBidirectional
Channels per Circuit4
Data Rate24Mbps
DescriptionIC TRANSLTR BIDIRECTION.
Detailed DescriptionVoltage Level Translato.
Digi-Key Part Number296-20698-2-ND - Tape &.
FamilyTXS
FeaturesAuto-Direction Sensing
Input Signal-
Kind of integrated circ.logic level voltage tra.
Kind of packagereel,
ManufacturerTEXAS INSTRUMENTS
Manufacturer Part No.TXS0104ERGYR
Manufacturer Product Nu.TXS0104ERGYR
Manufacturer Standard L.6 Weeks
Maximum Operating Tempe.+ 85 C
MfrTEXAS INSTRUMENTS
Minimum Operating Tempe.- 40 C
MountingSMD
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of channels4
Number of Circuits1
Operating Temperature-40?C ~ 85?C (TA)
Operating temperature-40...85?C
Output Signal-
Output TypeOpen Drain, Push-Pull
PackageTape & Reel (TR)
Package / Case14-VFQFN Exposed Pad
Package/CaseVQFN-14
PackagingReel
Product CategoryTranslation - Voltage L.
Product StatusActive
Propagation Delay Time260 ns
SeriesTXS0104E, -
Supplier Device Package14-VQFN (3.5x3.5)
Supply Voltage - Max3.6 V, 5.5 V
Supply Voltage - Min1.65 V, 2.3 V
Translator TypeVoltage Level
Type of integrated circ.digital
Unit Weight32.200 mg
Voltage - VCCA1.65 V ~ 3.6 V
Voltage - VCCB2.3 V ~ 5.5 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Win SourceTXS0104ERGYR0.546312836Texas Instruments0.54 @ 63
TMETXS0104ERGYR0.9961110TEXAS INSTRUMENTS0.9961 @ 10
thumbzoomDigi-Key11436632.234166137Texas Instruments2.234 @ 10
thumbzoomNewark28AH63002.26110TEXAS INSTRUMENTS2.26 @ 10
thumbzoomswatee.comTXS0104ERGYR3.1912542Texas Instruments3.19 @ 10
