Texas Instruments UCC2810DW

B017TIR1AM

Texas Instruments UCC2810DW IC REG CTRLR PWM CM 16-SOIC

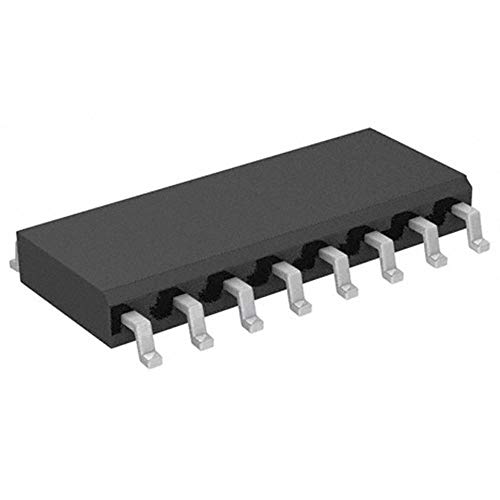

Texas Instruments UCC2810DW IC REG CTRLR PWM CM 16-SOICzoom

Attributes

Key Value
Base Product NumberUCC2810
CategoryIntegrated Circuits (IC.
Control FeaturesFrequency Control, Sync
DescriptionIC OFFLINE SW MULT TOP .
Detailed DescriptionConverter Offline Boost.
Digi-Key Part Number296-2536-5-ND
Duty Cycle49%
Fault Protection-
Frequency - Switching1MHz
Internal Switch(s)No
ManufacturerTexas Instruments
Manufacturer Product Nu.UCC2810DW
Manufacturer Standard L.6 Weeks
MfrTexas Instruments
Mounting TypeSurface Mount
Operating Temperature0?C ~ 70?C (TA)
Output IsolationIsolated
PackageTube
Package / Case16-SOIC (0.295", 7.50mm.
Part StatusActive
Product StatusActive
Series-
Supplier Device Package16-SOIC
TopologyBoost, Flyback, Forward
Voltage - Breakdown-
Voltage - Start Up11.3 V
Voltage - Supply (Vcc/V.8.3V ~ 11V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEUCC2810DW5.63117TEXAS INSTRUMENTS5.63 @ 1
thumbzoomDigi-Key30640917.99122Texas Instruments17.99 @ 1
