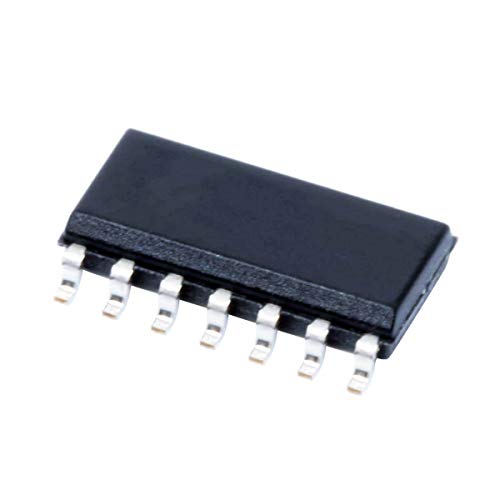

Texas Instruments TLC254CD

B00AZVA8MY

TLC254CD

TLC254CDzoom

Attributes

Key Value
Alternate Part No.595-TLC254CD
Amplifier TypeCMOS, Low Power Amplifi.
Base Product NumberTLC254
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
CMRR - Common Mode Reje.65 dB
Current - Input Bias0.6 pA
Current - Supply2.7mA (x4 Channels)
DescriptionIC CMOS 4 CIRCUIT 14SOIC
Detailed DescriptionCMOS Amplifier 4 Circui.
Digi-Key Part Number296-2906-5-ND
Dual Supply Voltage+/- 3 V, +/- 5 V
en - Input Voltage Nois.25 nV
Gain Bandwidth Product2.2 MHz
GBP - Gain Bandwidth Pr.1.7 MHz
Ib - Input Bias Current60 pA
ManufacturerTexas Instruments
Manufacturer Part No.TLC254CD
Manufacturer Product Nu.TLC254CD
Manufacturer Standard L.6 Weeks
Maximum Dual Supply Vol.+/- 8 V
Maximum Operating Tempe.+ 70 C
MfrTexas Instruments
Minimum Dual Supply Vol.+/- 0.7 V
Minimum Operating Tempe.0 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Channels4 Channel
Number of Circuits4
Operating Supply Voltage1.4 V to 16 V, +/- 0.7 .
Operating Temperature0?C ~ 70?C
Output TypeOpen Drain
PackageTube
Package / Case14-SOIC (0.154", 3.90mm.
Package/CaseSOIC-14
PackagingTube
ProductOperational Amplifiers
Product CategoryOperational Amplifiers .
Product StatusActive
SeriesLinCMOS?, TLC254
ShutdownNo Shutdown
Single Supply Voltage1.4 V to 16 V
Slew Rate4.5V/?s
SR - Slew Rate3.6 V/us
Supplier Device Package14-SOIC
Supply Current per Chan.8 mA
Supply Voltage - Max16 V
Supply Voltage - Min1.4 V
TechnologyLinCMOS
Unit Weight133.400 mg
Voltage - Input Offset1.1 mV
Voltage - Supply Span (.16 V
Voltage - Supply Span (.1.4 V
Vos - Input Offset Volt.10 mV

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key3717684.033846153857812655Texas Instruments4.03384615385 @ 78
RadwellTLC254CD5.331In StockTEXAS INSTRUMENTS SEMI5.33 @ 1
HotendaH26908205.431177Texas Instruments5.43 @ 1
thumbzoomswatee.comTLC254CD8.991114Texas Instruments8.99 @ 1
