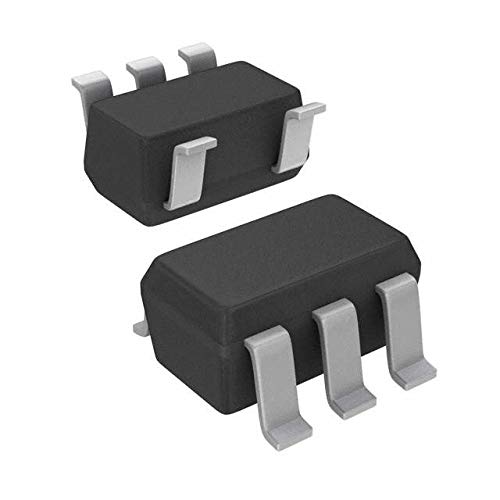

Texas Instruments TPS3123J12DBVT

B005TAMN8S

TPS3123J12DBVT

TPS3123J12DBVTzoom

Attributes

Key Value
Active logical levellow
Alternate Part No.595-TPS3123J12DBVT
Base Product NumberTPS3123
Battery Backup SwitchingNo Backup
BrandTEXAS INSTRUMENTS
CaseSOT23-5
CategoryIntegrated Circuits (IC.
Chip Enable SignalsNo Chip Enable
Kind of integrated circ.power on reset monitor .
Kind of packagereel,
Kind of RESET outputpush-pull
Manual ResetManual Reset
ManufacturerTEXAS INSTRUMENTS
Manufacturer Part No.TPS3123J12DBVT
Maximum Operating Tempe.+ 85 C
Maximum Power Dissipati.437 mW
MfrTEXAS INSTRUMENTS
Minimum Operating Tempe.- 40 C
MountingSMD
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of channels1
Number of Inputs Monito.1 Input
Number of Voltages Moni.1
Operating Supply Current14 uA
Operating Temperature-40?C ~ 85?C (TA)
Operating temperature-40...85?C
OutputPush-Pull, Totem Pole
Output Typepush-pull
Overvoltage Threshold1.12 V
PackageTape & Reel (TR)
Package / CaseSC-74A, SOT-753
Package/CaseSOT-23-5
PackagingReel
Power Fail DetectionNo
Product CategorySupervisory Circuits
Product StatusActive
ResetActive Low
Reset Delay Time180 ms
Reset Timeout100ms Minimum
Series-, TPS3123J12
Supplier Device PackageSOT-23-5
Supply Voltage - Max3.3 V
Supply Voltage - Min0.75 V
Threshold on-voltage1.08V
Threshold Voltage0.85 V to 3.3 V
TypeVoltage Supervisory, Si.
Type of integrated circ.Supervisor Integrated C.
Undervoltage Threshold1.08 V
Unit Weight13 mg
Voltage - Threshold1.08V
WatchdogWatchdog

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH27045571.4962650066Texas Instruments1.49626 @ 500
AvnetTPS3123J12DBVT1.5347325066Texas Instruments1.53473 @ 250
Rochester ElectronicsTPS3123J12DBVT1.65649750Texas Instruments1.65 @ 64
thumbzoomTMETPS3123J12DBVT2.33142TEXAS INSTRUMENTS2.33 @ 1
Mouser595-TPS3123J12DBVT2.521238Texas Instruments2.52 @ 1
Digi-Key3723113.66142Texas Instruments3.66 @ 1
thumbzoomswatee.comTPS3123J12DBVT4.571354Texas Instruments4.57 @ 1
