- mpnTS321IDBVT
- brandname: TEXAS INSTRUMENTS SEMI
- manufacturername: TEXAS INSTRUMENTS SEMI

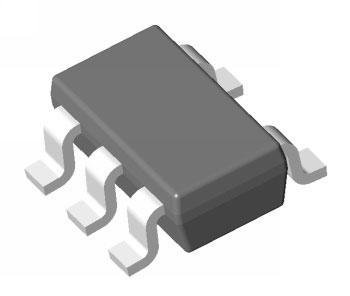

TS321IDBVT
- Brand: Texas Instruments
- PartNumber: TS321IDBVT
- Manufacturer: Texas Instruments
- Label: Texas Instruments
Attributes
| Key | Value |
|---|
| Alternate Part No. | 595-TS321IDBVT |
| Amplifier Type | General Purpose, Low Po. |
| Base Part Number | TS321 |
| Base Product Number | TS321 |
| Brand | Texas Instruments |
| Category | Integrated Circuits (IC. |
| CMRR - Common Mode Reje. | 65 dB |
| Current - Input Bias | 20nA, 20 nA |
| Current - Output / Chan. | 40mA, 40 mA |
| Current - Supply | 600?A, 600 |
| Dual Supply Voltage | +/- 3 V, +/- 5 V, +/- 9. |
| en - Input Voltage Nois. | 50 nV |
| Gain Bandwidth Product | 800 kHz, 800kHz |
| GBP - Gain Bandwidth Pr. | 0.8 MHz |
| Ib - Input Bias Current | 150 nA |
| Lead Free Status / RoHS. | RoHS Compliant |
| Manufacturer | Texas Instruments |
| Manufacturer Part No. | TS321IDBVT |
| Manufacturer Part Number | TS321IDBVT |
| Manufacturer Standard L. | 6 Weeks |
| Maximum Dual Supply Vol. | +/- 15 V |
| Maximum Operating Tempe. | + 125 C |
| Mfr | Texas Instruments |
| Minimum Dual Supply Vol. | +/- 1.5 V |
| Minimum Operating Tempe. | - 40 C |
| Mounting Style | SMD/SMT |
| Mounting Type | Surface Mount |
| Number of Channels | 1 Channel |
| Number of Circuits | 1 |
| Operating Supply Voltage | 3 V to 30 V, +/- 1.5 V . |
| Operating Temperature | -40, -40?C ~ 125?C |
| Output Current per Chan. | 40 mA |
| Output Type | - |
| Package | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Package/Case | SOT-23-5 |
| Packaging | Reel |
| Product | Operational Amplifiers |
| Product Category | Operational Amplifiers . |
| Product Status | Active |
| Series | -, TS321 |
| Shutdown | No Shutdown |
| Single Supply Voltage | 3 V to 30 V |
| Slew Rate | 0.4V/, 0.4V/?s |
| SR - Slew Rate | 0.4 V/us |
| Standard Package | 250 |
| Supplier Device Package | SOT-23-5 |
| Supply Current per Chan. | 0.8 mA |
| Supply Voltage - Max | 30 V |
| Supply Voltage - Min | 3 V |
| Technology | Bipolar |
| Unit Weight | 11.200 mg |
| Voltage - Input Offset | 500, 500 ?V |
| Voltage - Supply Span (. | 30 V |
| Voltage - Supply Span (. | 3 V |
| Voltage - Supply, Singl. | 3V ~ 30V, |
| Vos - Input Offset Volt. | 4 mV |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| iodParts | TS321IDBVT | 0.26 | 1000 | 45000 | | Texas Instruments | | 0.26 @ 1000 |
| RS Delivers | 168-4290 | 0.3636 | 250 | 330 | | Texas Instruments | | 0.3636 @ 250 |
| Hotenda | H2691139 | 0.75252 | 250 | 250 | | Texas Instruments | | 0.75252 @ 250 |
 | swatee.com | TS321IDBVT | 2.17 | 1 | 532 | | Texas Instruments | | 2.17 @ 1 |
| Digi-Key | 3507219 | 13.224 | 1 | 81 | | Texas Instruments | | 13.224 @ 1 |
