mpn:
manufacturer:
MPN:
Description:

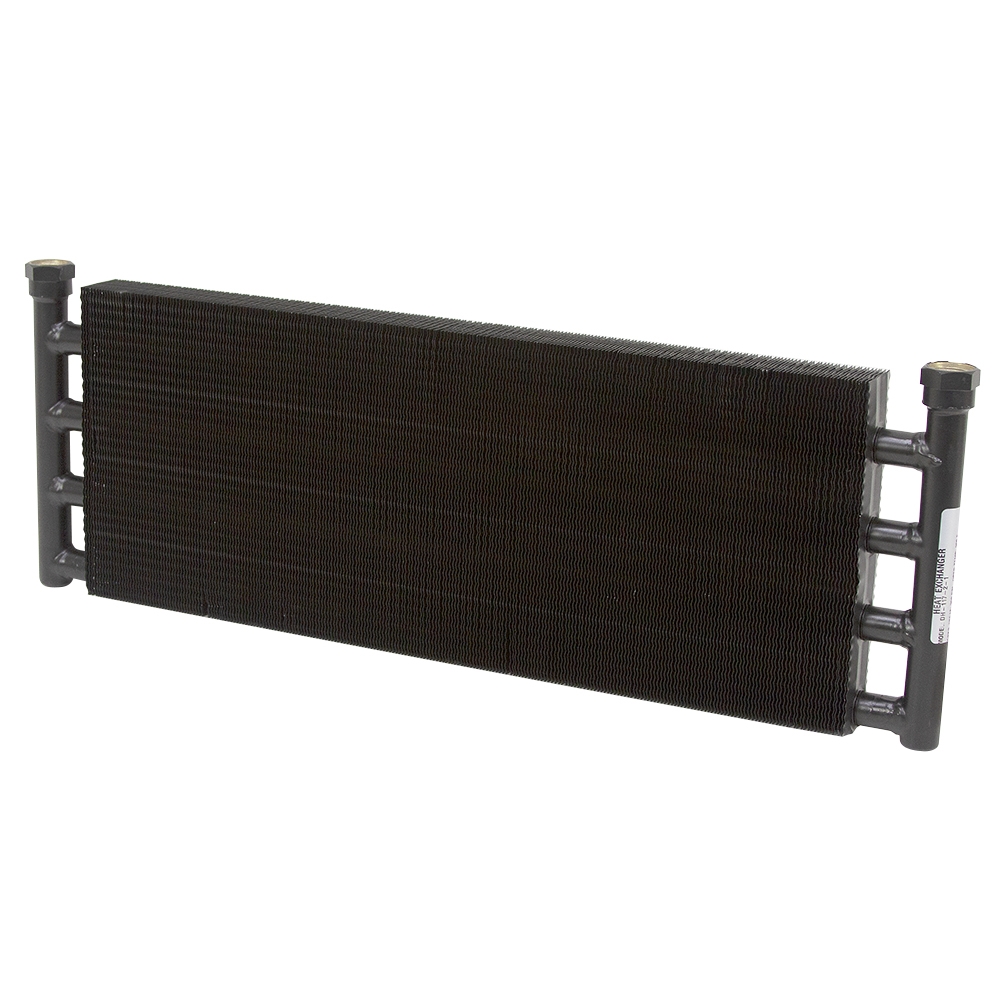

3-30 GPM TTP Thermal Transfer DH-117-2-1 Oil Cooler, Hydraulic Oil Coolers, 3-30 GPM TTP Thermal Transfer DH-117-2-1 Oil Cooler
Attributes
| Key ^ | Value |
|---|---|
| Fins, Turbulators | Aluminum |
| Flow Range GPM | 3-30 |
| HP Removal | 3-5 (7635-12725 BTU/HR) |
| Manifolds | Copper |
| Model Number | DH-117-2-1 |
| Overall Depth (in.) | 1.5 |
| Overall Height (in.) | 8.5 |
| Overall Width (in.) | 24 |
| Port Connection | Brass |
| Ports | SAE 10 |
| Pressure | 300 PSI max. |
| Shpg. | 12 lbs. |
| Temperature | 350 F? max. |
