- mpn511H20A0D
- brandname: THOMSON
- manufacturername: THOMSON

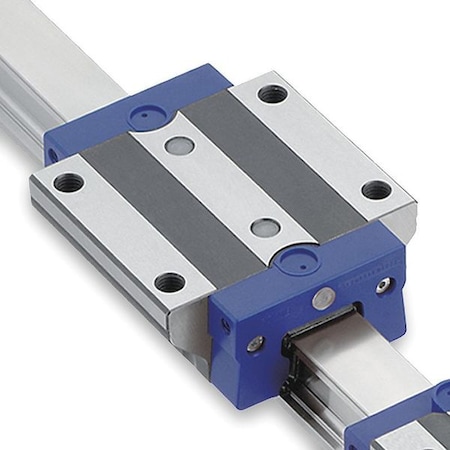

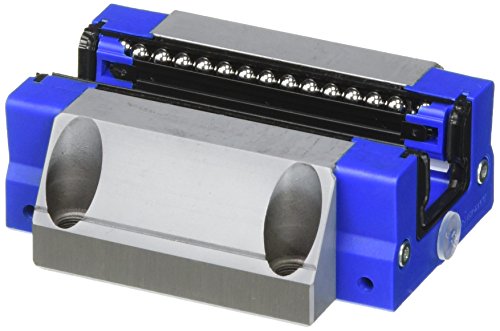

Thomson 511H20A0D Profile Carriage, Standard High Grade Linear Carriage, Ball Type, Clearance Preload, Low Drag Seals, Duralloy Thin Dense Chrome, Size 20, 63mm Width, 25-1/2mm Height, 71 1/2mm Length
- Brand: THOMSON
- PartNumber: 511H20A0D
- Size: Size 20
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Thomson
- Label: Thomson
Attributes
| Key | Value |
|---|
| accuracy class: | High Grade |
| Agency Compliance | DIN 645-1 |
| ball options: | Corrosion Resistant |
| bearing material: | Chrome Steel |
| Bearing Type | Ball Bearing |
| block type: | Standard Block |
| Brand | Thomson Linear |
| Carriage Finish | Duralloy |
| Carriage Height | 25.5 mm |
| Carriage Hole Size (mm) | M6 |
| Carriage Length | 71.5 mm, 2.972, 75.5 |
| Carriage Material | Chrome Vanadium Steel B. |
| Carriage Mounting Hole . | M6 |
| Carriage Style | Profile Guide Carriage |
| Carriage Type | Ball |
| Carriage Width | 2.48, 63.0, 63 mm |
| Dimension B | 63 mm |
| Dimension B1 | 20 mm |
| Dimension B2 | 21.5 mm |
| Dimension F | 5.4 mm |
| Dimension F1 | 5.8 mm |
| Dimension F2 | 10 mm |
| Dimension F3 | 9.5 mm |
| Dimension G | 8 mm |
| Dimension G1 | 6.5 mm |
| Dimension G2 | 11.5 mm |
| Dimension J | 25.5 mm |
| Dimension J1 | 19 mm |
| Dimension L | 75.5 mm |
| Dimension L1 | 40 mm |
| Dimension L2 | 35 mm |
| Dimension L3 | 53.5 mm |
| Dimension M1 | 5.2 mm |
| Dimension N | 53 mm |
| Dimension O | 8 mm |
| Dimension P | 8 mm |
| Dimension S1 | M6 |
| Dimension S2 | M6 |
| Dimension S3 | M5 |
| Dimension X | 60 mm |
| Dynamic Load Capacity | 18150 |
| Dynamic Load Capacity (. | 14,400 |
| Dynamic Load Capacity (. | 14,400 |
| finish/coating: | Hard-Chrome Plated |
| For Rail Width | 20 mm |
| For Rail Width (mm) | 20 |
| For Use With | 500 Series Ball Rail |
| Full Material | Chrome-Coated |
| Item | Linear Bearing Ball Car. |
| load capacity: | 18143 N |
| Max. Speed (In/Sec) | 5 |
| measurement standard: | Metric |
| nominal rail size: | 20 mm |
| operating temperature r. | -40 to 80 |
| Overall Height | 1.181, 30.0, 30 mm |
| overall height: | 30 mm |
| overall length: | 71.5 mm |
| overall width: | 63 mm |
| preload: | Clearance |
| resistance features: | Corrosion Resistant |
| Seals | Nitrile Rubber |
| series: | 500 |
| Slide Height (mm) | 30 |
| Static Load Capacity | 31400, 31,400 N |
| Static Load Capacity (L. | 31,400 |
| Static Load Capacity (N) | 31,400 |
| Temp. Range (C) | -40 Degrees to 80 Degr. |
| Type | 500 Series, Standard |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3498031 | 229.99 | 1 | In Stock | | Thomson | 0.85 | 229.99 @ 1 |
 | sustainablesupply.com | C2933520 | 238.25 | 1 | In Stock | | Thomson | 0.85 | 238.25 @ 1 |
 | MRO Supply | 1818238 | 239.44 | 1 | In Stock | | Thomson Linear | | 239.44 @ 1 |
| reidsupply.com | TLM-3097 | 253.26 | 1 | In Stock | | Thomson Linear | | 253.26 @ 1 |
| Applied Industrial | 101928143 | 271.8 | 1 | In Stock | | Thomson Industries | | 271.8 @ 1 |
| AmazonTP | B007IAR0SU | 280.68 | 1 | In Stock | 5 | Thomson | | 280.68 @ 1 |
 | motionindustries.com | 02693326 | 367.99 | 1 | In Stock | | Thomson | | 367.99 @ 1 |
