- mpn511H20C0D
- brandname: Thomson
- manufacturername: Thomson

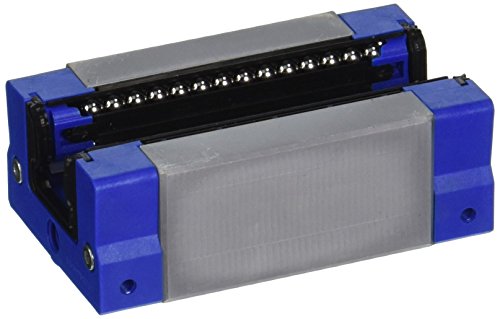

Thomson 511H20C0D Profile Carriage, Narrow High Grade Linear Carriage, Ball Type, Clearance Preload, Low Drag Seals, Duralloy Thin Dense Chrome, Size 20, 44mm Width, 25-1/2mm Height, 71 1/2mm Length
- Brand: THOMSON
- PartNumber: 511H20C0D
- Size: Size 20
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Thomson
- Label: Thomson
Attributes
| Key | Value |
|---|
| (hidden) product type b. | 511H20C0D THOMSON |
| Agency Compliance | DIN 645-1 |
| Bearing Type | Ball Bearing |
| Brand | Thomson Linear |
| Carriage Finish | Duralloy |
| Carriage Height | 25.5 mm |
| Carriage Hole Size (mm) | M5 |
| Carriage Length | 71.5 mm, 2.972, 75.5 |
| Carriage Material | Chrome Vanadium Steel B. |
| Carriage Mounting Hole . | M5 |
| Carriage Style | Profile Guide Carriage |
| Carriage Type | Ball |
| Carriage Width | 1.732, 44.0, 44 mm |
| Dimension B | 44 mm |
| Dimension B1 | 20 mm |
| Dimension B2 | 12 mm |
| Dimension F1 | 5.8 mm |
| Dimension F2 | 10 mm |
| Dimension G | 7 mm |
| Dimension G2 | 11.5 mm |
| Dimension J | 25.5 mm |
| Dimension J1 | 19 mm |
| Dimension L | 75.5 mm |
| Dimension L1 | 36 mm |
| Dimension L3 | 53.5 mm |
| Dimension M1 | 5.2 mm |
| Dimension N | 32 mm |
| Dimension O | 6 mm |
| Dimension S2 | M5 |
| Dimension S3 | M5 |
| Dimension X | 60 mm |
| Dynamic Load Capacity | 14,400 N, 18150 |
| Dynamic Load Capacity (. | 14,400 |
| Dynamic Load Capacity (. | 14,400 |
| Features | No Preload |
| For Rail Width | 20 mm |
| For Rail Width (mm) | 20 |
| For Use With | 500 Series Ball Rail |
| Full Material | Chrome-Coated |
| Item | Linear Bearing Ball Car. |
| Linear Guide Design | Narrow Carriage |
| Max. Speed (In/Sec) | 5 |
| Maximum Operating Tempe. | 80 Degrees F |
| Minimum Operating Tempe. | -40 Degrees F |
| Overall Height | 1.181, 30.0, 30 mm |
| Seals | Nitrile Rubber |
| Slide Height (mm) | 30 |
| Static Load Capacity | 31400, 31,400 N |
| Static Load Capacity (L. | 31,400 |
| Static Load Capacity (N) | 31,400 |
| Temp. Range (C) | -40 Degrees to 80 Degr. |
| Type | 500 Series, Standard |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3196636 | 229.99 | 1 | In Stock | 15 | Thomson | 0.77 | 229.99 @ 1 |
 | MRO Supply | 1818585 | 230.23 | 1 | In Stock | | Thomson Linear | | 230.23 @ 1 |
| reidsupply.com | TLM-3103 | 322.33 | 1 | In Stock | | Thomson Linear | | 322.33 @ 1 |
 | sustainablesupply.com | C3003412 | 332.42 | 1 | In Stock | | Thomson | 0.77 | 332.42 @ 1 |
