THOMSON OPN487296

B002E7HQ36

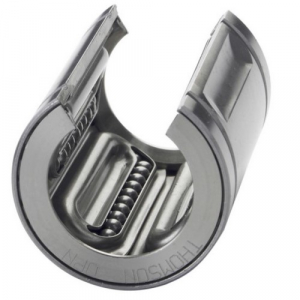

Thomson OPN487296 PowerTrax Precision Linear Bearing, Fixed Diameter, Open, Steel, 3.000" Bore

Thomson OPN487296 PowerTrax Precision Linear Bearing, Fixed Diameter, Open, Steel, 3.000" Borezoom

Attributes

Key Value
Accelerated Speed450 fps
bearing material:Steel
Between Grooves (mm)4.728 in
Bore Dia.3.0 in
Brand & SeriesTHOMSON Precision
bushing type:Ball Bushing
closure type:Open
Dimension C6 in
Dimension C14.728 in
Dimension C20.12
Dimension E1.5 in
Dimension T3.0
Dynamic Load Capacity (.2,000
dynamic load capacity:2000 lbf
For Use WithThomson Shafting
inner ring width:4.728 in
Inside Dia.3 in
Inside Dia. Tolerance+/-.001
ItemLinear Ball Bearing
Length152.400 mm / 6 in
Length (In.)6 in
load capacity:2000 lbf
MaterialSteel
measurement standard:Inch
operating temperature r.Maximum of +500
Outside Dia.4.5 in
outside diameter:4.5020 in
overall width:5.970 / 6.000 in
precision rating:Not Rated
Required Housing Bore D.4.5 in
retaining ring groove d.4.708 / 4.728 in
series:Precision Steel
Slot Angle (Degrees)50
Slot Width (In.)1.5 in
Steady State Speed10 fps
System of MeasurementInch
Temp. Range (F)0 - 300
TypeOpen
wiper type:No Wiper

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomprimebuy.comOPN487296702.01200Thomson Industries702.0 @ 200
thumbzoomNational Supply Network35528470741.589951200Thomson Industries741.58995 @ 200
thumbzoomMRO Supply1815597790.611200Thomson Linear790.61 @ 200
thumbzoomZoroG2063616791.99120015Thomson7.59791.99 @ 200
thumbzoommotionindustries.com00000374998.241200Thomson998.24 @ 200
thumbzoomcbtcompany.comOPN4872961016.651200Thomson Industries1016.65 @ 200
thumbzoomsustainablesupply.comC16498101175.731200Thomson7.591175.73 @ 200
thumbzoombscsource.comOPN4872961235.291200Thomson Industries1235.29 @ 200
thumbzoomGuardian355284701301.171200Thomson Industries1301.17 @ 200
