Texas Instruments PTH05000WAD

B011OZBJ4K

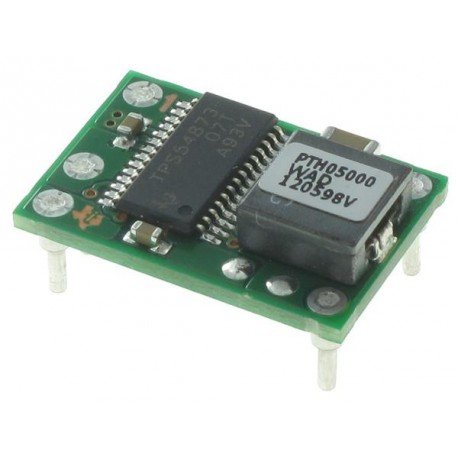

TEXAS INSTRUMENTS PTH05000WAD Non Isolated Board Mount DC/DC Converter, DIP, 21.6 W, 900 mV, 3.6 V, 6 A, 4.5 V

TEXAS INSTRUMENTS PTH05000WAD Non Isolated Board Mount DC/DC Converter, DIP, 21.6 W, 900 mV, 3.6 V, 6 A, 4.5 Vzoom

Attributes

Key Value
ApplicationsITE (Commercial)
Base Part NumberPTH05000W
Base Product NumberPTH05000
CategoryPower Supplies - Board .
Current - Output (Max)6A
Efficiency92%
Factory Pack Quantity56
Features-
In-stock0
Lead Free Status / RoHS.RoHS Compliant
Manufacturer Part NumberPTH05000WAD
Manufacturer Standard L.12 Weeks
MfrTexas Instruments
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature-40?C ~ 85?C, -40
Operating Temperature R.- 40 C to + 85 C
Output Current (Channel.6 A
PackageTray
Package / Case5-DIP Module
Package / Case SizeThrough Hole Module
Package/CaseDIP MODULE-TH5
PackagingTube, Tray
Product CategoriesDC/DC Switching Convert.
Product StatusActive
RoHs StatusRohs
SeriesPTH05000W
Size / Dimension0.75" L x 0.50" W x 0.3.
Standard Package56
TypeNon-Isolated PoL Module
Voltage - Input (Max)5.5V
Voltage - Input (Min)4.5V
Voltage - Output 10.9 ~ 3.6V
Voltage - Output 2-
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
iodPartsPTH05000WAD11.2225280Texas Instruments11.22 @ 25
Digi-Key157365424.91In StockTexas Instruments24.9 @ 1
