Texas Instruments PTH05000WAZ

B010X4HIFM

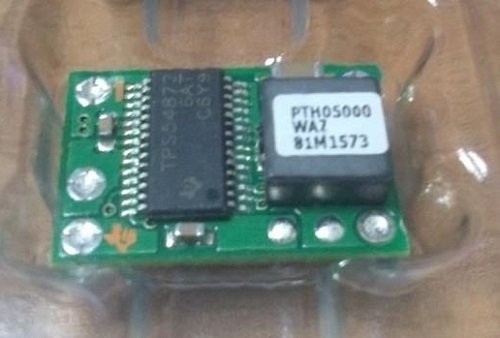

PTH05000WAZ TI MODULE PIP .9-3.6V 6A SMD 1PC/LOT

PTH05000WAZ TI MODULE PIP .9-3.6V 6A SMD 1PC/LOTzoom

Attributes

Key Value
Alternate Part No.595-PTH05000WAZ
ApplicationsITE (Commercial)
Base Product NumberPTH05000
BrandTexas Instruments
CategoryPower Supplies - Board .
Current - Output (Max)6A
Efficiency92%
Factory Pack Quantity49
FeaturesOTP, UVLO
In-stock0
Input Voltage Range4.5 V to 5.5 V
ManufacturerTexas Instruments
Manufacturer Part No.PTH05000WAZ
MfrTexas Instruments
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Outputs1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current (Channel.6 A
Output Current-Channel 16 A
Output Voltage-Channel 13.6 V
PackageTray
Package / Case5-SMD Module
Package / Case SizeSurface Mount Module
Package/CaseDIP-5
Package/Case SizeSurface Mount Module
PackagingTube, Tray
Part StatusActive
ProductNon-Isolated / POL
Product CategoriesDC/DC Converters
Product CategoryNon-Isolated DC/DC Conv.
RoHs StatusRohs
SeriesPTH05000W
Size / Dimension0.75" L x 0.50" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)5.5V
Voltage - Input (Min)4.5V
Voltage - Output 10.9 ~ 3.6V
Voltage - Output 2-
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key76417811.348571428628In StockTexas Instruments11.3485714286 @ 28
thumbzoomNewark29AH719017.951In StockTEXAS INSTRUMENTS17.95 @ 1
thumbzoomswatee.comPTH05000WAZ20.74168Texas Instruments20.74 @ 1
