Texas Instruments PTH08080WAH

B00DLSM0A6

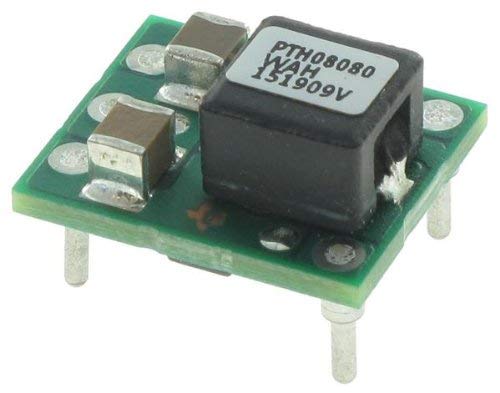

TEXAS INSTRUMENTS PTH08080WAH DC-DC CONV, NON ISO POL, 1 O/P, 10W, 2.25A (1 piece)

TEXAS INSTRUMENTS PTH08080WAH DC-DC CONV, NON ISO POL, 1 O/P, 10W, 2.25A (1 piece)zoom

Attributes

Key Value
Alternate Part No.595-PTH08080WAH
ApplicationsITE (Commercial)
Base Product NumberPTH08080
BrandTexas Instruments
CategoryPower Supplies - Board .
Current - Output (Max)2.25A
DescriptionDC DC CONVERTER 0.9-5.5V
Detailed DescriptionNon-Isolated PoL Module.
Digi-Key Part Number296-20432-ND
Efficiency93.5%
Factory Pack Quantity90
Features-
In-stock0
Input Voltage Range4.5 V to 18 V
ManufacturerTexas Instruments
Manufacturer Part No.PTH08080WAH
Manufacturer Product Nu.PTH08080WAH
Manufacturer Standard L.12 Weeks
MfrTexas Instruments
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current (Channel.2.25 A
Output Current-Channel 12.25 A
Output Voltage-Channel 15.5 V
PackageTray
Package / Case5-DIP Module
Package / Case SizeThrough Hole Module
Package/CaseDIP-5
Package/Case SizeThrough Hole Module
PackagingTube, Tray
ProductNon-Isolated / POL
Product CategoriesDC/DC Switching Convert.
Product CategoryNon-Isolated DC/DC Conv.
Product StatusActive
RoHs StatusLead free / RoHS Compli.
SeriesPTH08080W
Size / Dimension0.60" L x 0.50" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)18V
Voltage - Input (Min)4.5V
Voltage - Output 10.9 ~ 5.5V
Voltage - Output 2-
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsPTH08080WAH5.81In StockTexas Instruments5.8 @ 1
RS Delivers661-794812.02411Texas Instruments12.024 @ 1
thumbzoomswatee.comPTH08080WAH12.6113038Texas Instruments12.61 @ 1
thumbzoomNewark33AH470413.321In StockTEXAS INSTRUMENTS13.32 @ 1
RadwellPTH08080WAH14.131In StockTEXAS INSTRUMENTS SEMI14.13 @ 1
thumbzoomDigi-Key72404820.461In StockTexas Instruments20.46 @ 1
AmazonTPB00DLSM0A633.341In Stock3Texas Instruments33.34 @ 1
