Texas Instruments PTH08080WAZT

B00SRXQOC0

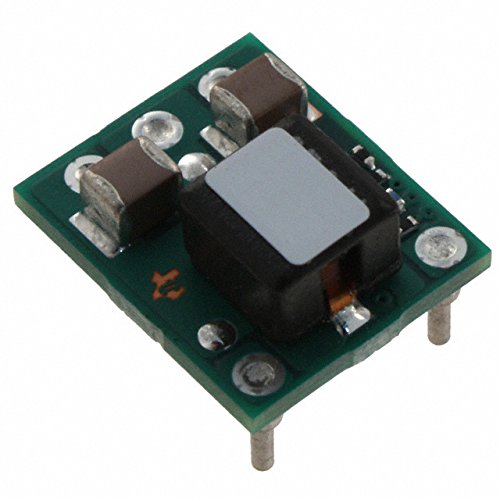

MODULE PIP 18VIN 2.25A ADJ SMD (10 pieces)

MODULE PIP 18VIN 2.25A ADJ SMD (10 pieces)zoom

Attributes

Key Value
Alternate Part No.595-PTH08080WAZT
ApplicationsITE (Commercial)
Base Product NumberPTH08080
BrandTexas Instruments
CategoryPower Supplies - Board .
Current - Output (Max)2.25A
Efficiency93.5%
Factory Pack Quantity250
Features-
In-stock0
Input Voltage Range4.5 V to 18 V
ManufacturerTexas Instruments
Manufacturer Part No.PTH08080WAZT
MfrTexas Instruments
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Outputs1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current (Channel.2.25 A
Output Current-Channel 12.25 A
Output Voltage-Channel 10.9 V to 5.5 V
PackageTape & Reel (TR)
Package / Case5-SMD Module
Package / Case SizeSurface Mount Module
Package/CaseDIPMODULE (EUG) | 5
Package/Case SizeSurface Mount Module
PackagingReel
ProductNon-Isolated / POL
Product CategoriesPower Management Module.
Product CategoryNon-Isolated DC/DC Conv.
Product StatusActive
RoHs StatusRohs
SeriesPTH08080W
Size / Dimension0.60" L x 0.50" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)18V
Voltage - Input (Min)4.5V
Voltage - Output 10.9 ~ 5.5V
Voltage - Output 2-
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
tistore.comPTH08080WAZT8.251110Texas Instruments8.251 @ 10
Digi-Key22556049.338110Texas Instruments9.338 @ 10
thumbzoomswatee.comPTH08080WAZT12.71550Texas Instruments12.7 @ 10
thumbzoomNewark28AH475413.37110TEXAS INSTRUMENTS13.37 @ 10
RadwellPTH08080WAZT14.23110TEXAS INSTRUMENTS SEMI14.23 @ 10
