PTH08T261WAD

B011OZD8EY

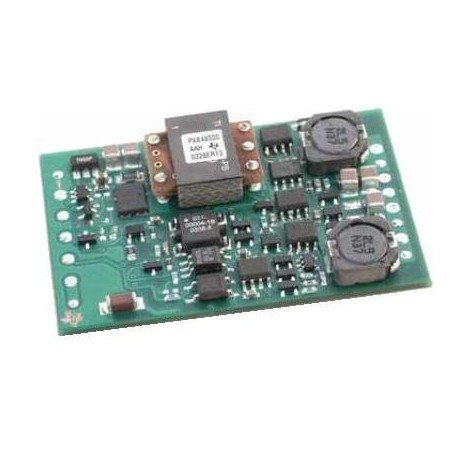

TEXAS INSTRUMENTS PTH08T261WAD Non Isolated Board Mount DC/DC Converter, 16.5 W, 690 mV, 5.5 V, 3 A, 4.5 V

TEXAS INSTRUMENTS PTH08T261WAD Non Isolated Board Mount DC/DC Converter, 16.5 W, 690 mV, 5.5 V, 3 A, 4.5 Vzoom

Attributes

Key Value
ApplicationsITE (Commercial)
Base Product NumberPTH08
CategoryPower Supplies - Board .
Current - Output (Max)3A
Efficiency95%
Factory Pack Quantity36
Features-
Height9.09
In-stock0
Length18.92 mm
MfrTexas Instruments
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current (Channel.3 A
Output TypeSingle
PackageTray
Package / Case10-DIP Module
Package / Case SizeThrough Hole Module
Package/CaseDIP-10
PackagingTray
Product CategoriesDC/DC Switching Control.
Product StatusActive
RoHs StatusRohs
SeriesPTH08T261W
Size / Dimension0.75" L x 0.62" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)14V
Voltage - Input (Min)4.5V
Voltage - Output 10.69 ~ 5.5V
Voltage - Output 2-
Voltage - Output 3-
Width15.75 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key142689411.541In StockTexas Instruments11.54 @ 1
thumbzoomRadwellPTH08T261WAD17.81In StockTEXAS INSTRUMENTS SEMI3.017.8 @ 1
