Texas Instruments PTH12000WAD

B018CPT0P0

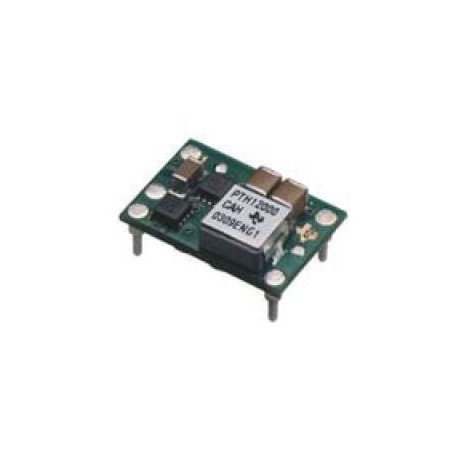

TEXAS INSTRUMENTS PTH12000WAD Non Isolated Board Mount DC/DC Converter, DIP, 33 W, 1.2 V, 5.5 V, 6 A, 10.8 V

TEXAS INSTRUMENTS PTH12000WAD Non Isolated Board Mount DC/DC Converter, DIP, 33 W, 1.2 V, 5.5 V, 6 A, 10.8 Vzoom

Attributes

Key Value
Alternate Part No.595-PTH12000WAD
ApplicationsITE (Commercial)
Base Product NumberPTH12000
BrandTexas Instruments
CategoryPower Supplies - Board .
Current - Output (Max)6A
Efficiency92%
Factory Pack Quantity56
Features-
In-stock0
Input Voltage Range10.8 V to 13.2 V
ManufacturerTexas Instruments
Manufacturer Part No.PTH12000WAD
MfrTexas Instruments
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current (Channel.6 A
Output Current-Channel 16 A
Output Voltage-Channel 11.2 V to 5.5 V
PackageTray
Package / Case5-DIP Module
Package / Case SizeThrough Hole Module
Package/CaseThrough Hole Module
Package/Case SizeThrough Hole Module
PackagingTube, Tray
ProductNon-Isolated / POL
Product CategoriesDC/DC Switching Control.
Product CategoryNon-Isolated DC/DC Conv.
Product StatusActive
RoHs StatusRohs
SeriesPTH12000W, PTH12000
Size / Dimension0.75" L x 0.50" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)13.2V
Voltage - Input (Min)10.8V
Voltage - Output 11.2 ~ 5.5V
Voltage - Output 2-
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark28AH475519.121In StockTEXAS INSTRUMENTS19.12 @ 1
RadwellPTH12000WAD19.631In StockTEXAS INSTRUMENTS SEMI19.63 @ 1
thumbzoomswatee.comPTH12000WAD20.74143Texas Instruments20.74 @ 1
Digi-Key1352037325.741In StockTexas Instruments25.74 @ 1
