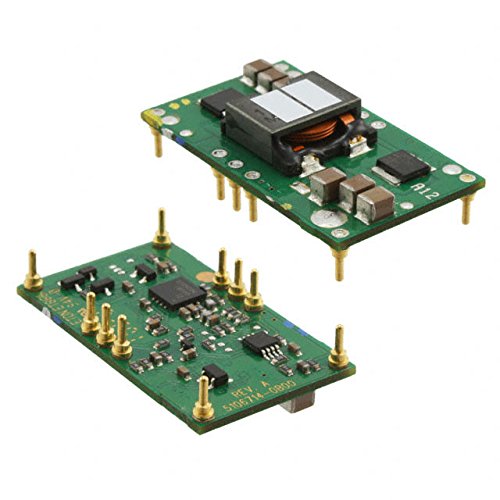

Texas Instruments PTH12020WAH

B005T5I8OG

PTH12020WAH

PTH12020WAHzoom

Attributes

Key Value
ApplicationsITE (Commercial)
Base Product NumberPTH12020
CategoryPower Supplies - Board .
Current - Output (Max)18A
DescriptionDC DC CONVERTER 1.2-5.5.
Detailed DescriptionNon-Isolated PoL Module.
Digi-Key Part Number296-20463-ND
Efficiency95%
Factory Pack Quantity20
Features-
In-stock0
ManufacturerTexas Instruments
Manufacturer Product Nu.PTH12020WAH
Manufacturer Standard L.6 Weeks
MfrTexas Instruments
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current (Channel.18 A
PackageTray
Package / Case10-DIP Module
Package / Case SizeThrough Hole Module
Package/CaseDIP-10
PackagingTube
Product CategoriesDC/DC Switching Convert.
Product StatusActive
RoHs StatusRohs
SeriesPTH12020W, PTH12020
Size / Dimension1.50" L x 0.87" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)13.2V
Voltage - Input (Min)10.8V
Voltage - Output 11.2 ~ 5.5V
Voltage - Output 2-
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowPTH12020WAH25.0820In StockTexas Instruments25.08 @ 20
Mouser595-PTH12020WAH27.0314Texas Instruments27.03 @ 1
thumbzoomDigi-Key56642542.281131Texas Instruments42.28 @ 1
