GENERICO PTN78000AAH

B0CNWHZVS5

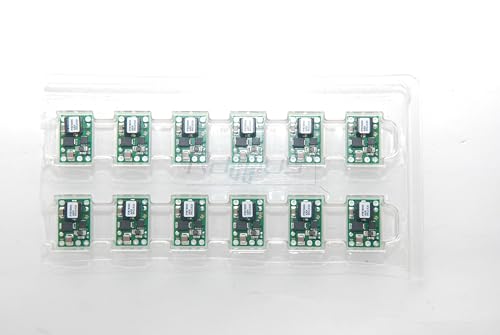

GENERICO PTN78000AAH Batch 6 Pieces DC/DC Power Supply Module 5 PIN, 1 CHANNEL, 5/1.5 A

GENERICO PTN78000AAH Batch 6 Pieces DC/DC Power Supply Module 5 PIN, 1 CHANNEL, 5/1.5 Azoom

Attributes

Key Value
Alternate Part No.595-PTN78000AAH
ApplicationsITE (Commercial)
Base Product NumberPTN78000
BrandTexas Instruments
CategoryPower Supplies - Board .
Current - Output (Max)1.5A
Dimensions18.92 x 12.57 x 8.25mm
Efficiency84%
Factory Pack Quantity56
Features-
Height8.25mm
In-stock0
Input Voltage Range7 V to 29 V
Length18.92mm
ManufacturerTexas Instruments
Manufacturer Part No.PTN78000AAH
Maximum Input Voltage7 V
Maximum Operating Tempe.+85 ?C
MfrTexas Instruments
Minimum Input Voltage29 V
Minimum Operating Tempe.-40 ?C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current (Channel.1.5 A
Output Current-Channel 11.5 A
Output Power9 W
Output Voltage (Channel.- 15 V to - 3 V
Output Voltage-Channel 1- 15 V to - 3 V
PackageTray
Package / Case5-DIP Module
Package / Case SizeThrough Hole Module
Package TypeDIP Module
Package/CaseDIP-5
Package/Case SizeThrough Hole Module
PackagingTube, Tray
Pin Count5
ProductNon-Isolated / POL
Product CategoriesSwitching Converters, R.
Product CategoryNon-Isolated DC/DC Conv.
Product StatusActive
RoHs StatusRohs
SeriesPTN78000A
Size / Dimension0.75" L x 0.50" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)28.7V
Voltage - Input (Min)7V
Voltage - Output 1-15 ~ -3V
Voltage - Output 2-
Voltage - Output 3-
Width12.57mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRS Delivers661-815515.7681In StockTexas Instruments15.768 @ 1
Digi-Key75531616.541In StockTexas Instruments16.54 @ 1
Win SourcePTN78000AAH16.861676Texas Instruments16.86 @ 1
thumbzoomswatee.comPTN78000AAH22.261231Texas Instruments22.26 @ 1
RadwellPTN78000AAH22.761In StockTEXAS INSTRUMENTS SEMI22.76 @ 1
thumbzoomNewark29AH121424.781In StockTEXAS INSTRUMENTS24.78 @ 1
