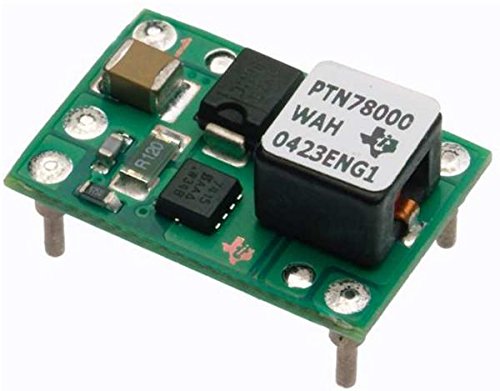

Texas Instruments PTN78000WAZ

Non Isolated POL DC/DC Converter, 22.5 W, 2.5 V, 12.6 V, 1.5 A, Adjustable, Surface Mount DIP

Non Isolated POL DC/DC Converter, 22.5 W, 2.5 V, 12.6 V, 1.5 A, Adjustable, Surface Mount DIPzoom

Attributes

Key Value
ApplicationsITE (Commercial)
Base Product NumberPTN78000
CategoryPower Supplies - Board .
Current - Output (Max)1.5A
DescriptionDC DC CONVERTER 2.5-12..
Detailed DescriptionNon-Isolated PoL Module.
Digi-Key Part Number296-20508-ND
Efficiency91%
Factory Pack Quantity49
FeaturesOCP, OTP, UVLO
In-stock0
ManufacturerTexas Instruments
Manufacturer Product Nu.PTN78000WAZ
Manufacturer Standard L.8 Weeks
MfrTexas Instruments
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Outputs1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current (Channel.1.5 A
Output Voltage (Channel.2.5 V to 12.6 V
PackageTray
Package / Case5-SMD Module
Package / Case SizeSurface Mount Module
Package/CaseDIP-5
PackagingTube
Product CategoriesSwitching Converters, R.
Product StatusActive
RoHs StatusRohs
SeriesPTN78000W
Size / Dimension0.75" L x 0.50" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)36V
Voltage - Input (Min)7V
Voltage - Output 12.5 ~ 12.6V
Voltage - Output 2-
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers545-782719.021In StockTexas Instruments19.02 @ 1
thumbzoomNewark29AH720122.531In StockTEXAS INSTRUMENTS22.53 @ 1
RadwellPTN78000WAZ24.031In StockTEXAS INSTRUMENTS SEMI24.03 @ 1
thumbzoomDigi-Key76420227.731In StockTexas Instruments27.73 @ 1
