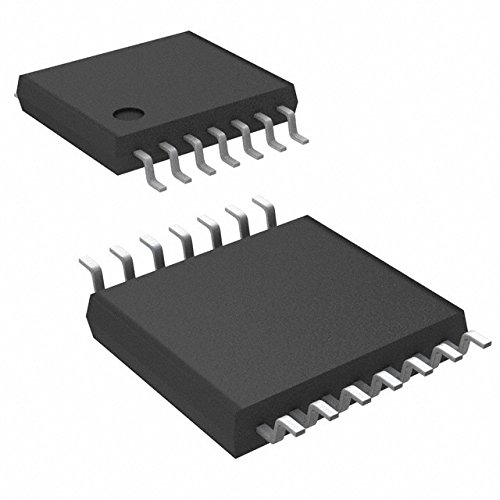

Buy SN74HC08QPWRQ1 TI ,Marking Code: HC08Q1, Learn more about SN74HC08QPWRQ1 Automotive Catalog Quadruple 2-Input Positive-AND Gates 14-TSSOP -40 to 125,Gates (AND / NAND / OR / NOR) Auto Cat Quad 2 Inp Positive AND Gates, View the manufacturer, and stock, and datasheet pdf for the SN74HC08QPWRQ1 at Jotrin Electronics.
Preferred Price:
1.61
Price:
1.61
Min Simple Price:
0.1922
Absolute Min Price:
1.55
Min Price:
1.55
qty:
161
simpleSku:
jEwMTU:::SN74HC08QPWRQ1
sku:
jEwMTU::FM:SN74HC08QPWRQ1@y0
condition:
11
seller:
Hotenda
amzMan:
texas instruments
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Part No. | 595-SN74HC08QPWRQ1 |
| Base Product Number | 74HC08 |
| Brand, Manufacturer, Mfr | Texas Instruments |
| Category | Integrated Circuits (ICs) |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Current - Quiescent (Max) | 2 ?A |
| Factory Pack Quantity | 2000 |
| Features | - |
| High Level Output Current | - 4 mA |
| In-stock | 0 |
| Logic Family | HC |
| Logic Level - High | 1.5V ~ 4.2V |
| Logic Level - Low | 0.5V ~ 1.8V |
| Logic Type | AND Gate |
| Low Level Output Current | 5.2 mA, 4 mA |
| Manufacturer Part No. | SN74HC08QPWRQ1 |
| Marking Code | HC08Q1 |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Maximum Operating Temperature | + 125 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | SMD/SMT |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Number of Gates | 4 Gate |
| Number of Input Lines, Number of Inputs | 2 |
| Number of Lines In/Out | 2 / 1 |
| Number of Output Lines | 1 |
| Operating Temperature | -40?C ~ 125?C |
| Operating Temperature Range | - 40 C to + 125 C |
| Package | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Package / Case, Package/Case | TSSOP-14 |
| Packaging | Reel |
| Product | AND |
| Product Categories, Product Category | Logic Gates |
| Product Status | Active |
| Propagation Delay Time | 100 ns, 125 ns |
| RoHs Status | Rohs |
| Series | Automotive, AEC-Q100, 74HC, SN74HC08-Q1 |
| Supplier Device Package | 14-TSSOP |
| Supply Voltage Max, Supply Voltage - Max | 6 V |
| Supply Voltage Min, Supply Voltage - Min | 2 V |
| Unit Weight | 56.800 mg |
| Voltage - Supply | 2V ~ 6V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Hotenda | H2547322 | 0.1922 | 0.1922 | 1 | 520 | Texas Instruments | 0.1922 @ Qty: 1+ | |||
 | swatee.com | SN74HC08QPWRQ1 | 1.19 | 1.19 | 1 | 3546 | Texas Instruments | 1.19 @ Qty: 1+ | ||
| AmazonSC | B005T7GQFM | 2.36 | 2.36 | 1 | 161 | Texas Instruments | 2.36 @ Qty: 1+ | |||
| Digi-Key | 1913516 | 12.62 | 12.62 | 1 | 161 | Texas Instruments | 12.62 @ Qty: 1+ |
