Generic TIBPAL16L8-25CFN

B0992T5QC2

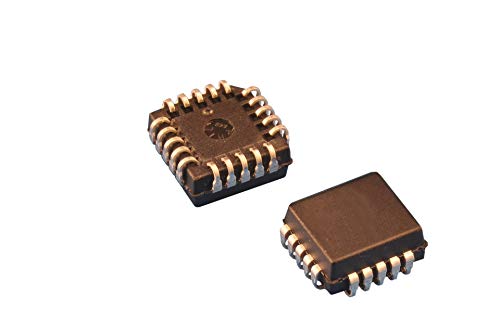

TIBPAL16L8-25CFN - Programmable 20-Pins PLCC 16L8 (10 Piece Lot)

TIBPAL16L8-25CFN - Programmable 20-Pins PLCC 16L8 (10 Piece Lot)zoom

Attributes

Key Value
Base Product NumberTIBPAL16
CasePLCC20
CategoryIntegrated Circuits (IC.
DescriptionIC PLD 25NS 20PLCC
Detailed DescriptionIMPACT-X? PAL? Programm.
Digi-Key Part Number296-10086-5-ND
DigiKey ProgrammableVerified
Factory Pack Quantity46
In-stock0
Logic ModesCombinator
ManufacturerTexas Instruments
Manufacturer Product Nu.TIBPAL16L8-25CFN
Maximum Operating Tempe.+ 125 C
MfrTexas Instruments
Minimum Operating Tempe.- 55 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
No. of Outputs8
No. of Pins20
Number of Inputs16
Oper. Temp (?C) Max.70
Oper. Temp (?C) Min0
Operating Temperature- 55 C to + 125 C
Output Config3-State
PackageTube
Package / CasePLCC-20, 20-LCC (J-Lead)
Package/CasePLCC-20
PackagingTube
Pinout Equivalence Numb.20-141
Prod. Terms Max.8
Product CategoriesProgrammable Array Logi.
Product StatusObsolete
Program Memory TypePAL
Programmable TypePAL
RoHs StatusGreen
SeriesTIBPAL16L8-25C, IMPACT-.
SKU318160
Speed25 ns
Supplier Device Package20-PLCC (9x9)
Supply Current100 mA
Supply Voltage Max5.25 V
Supply Voltage Min4.75 V
Surface Mounted Yes/NoYES
Tech.TTL Integrated Circuit
tPD Max. (S)25n
TypeSemiConductor
Voltage - Input5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsTIBPAL16L8-25CFN0.9703110Texas Instruments0.9703 @ 10
thumbzoomDigi-Key3806061.2272440944925441099Texas Instruments1.22724409449 @ 254
thumbzoomComponent Electronics16L8-25CFN-TI3.081438Texas Instruments3.08 @ 10
thumbzoomRadwellTIBPAL16L8-25CFN4.41110TEXAS INSTRUMENTS SEMI1.04.41 @ 10
Little DiodeTIBPAL16L8-25CFN17.8217325110TI17.8217325 @ 10
