Texas Instruments TPS61170DRVT

B005S3L2DI

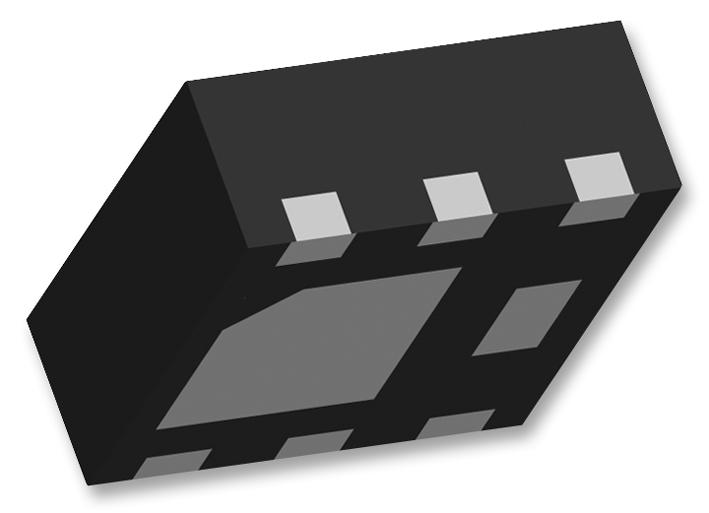

TEXAS INSTRUMENTS TPS61170DRVT IC, BOOST CONVERTER, SON-6 (1 piece)

TEXAS INSTRUMENTS TPS61170DRVT IC, BOOST CONVERTER, SON-6 (1 piece)zoom

Attributes

Key Value
Applicationfor LED applications
Base Part NumberTPS611
Base Product NumberTPS61170
CaseWSON6
CategoryIntegrated Circuits (IC.
Current - Output960mA (Switch)
Factory Pack Quantity250
Frequency1.2MHz
Frequency - Switching1.2MHz
FunctionStep-Up, Step-Up/Step-D.
In-stock0
Input voltage3...18V DC
Integrated circuit feat.PWM
Kind of integrated circ.DC/DC converter
Kind of packagereel,
Lead Free Status / RoHS.RoHS Compliant
ManufacturerTEXAS INSTRUMENTS
Manufacturer Part NumberTPS61170DRVT
Manufacturer Standard L.6 Weeks
Marking CodeBZS
MfrTEXAS INSTRUMENTS
MountingSMD
Mounting TypeSurface Mount
Number of channels1
Number of Outputs1
Operating Temperature-40, -40?C ~ 85?C (TA)
Operating temperature-40...85?C
Output ConfigurationPositive
Output TypeAdjustable
Output voltage3...38V DC
PackageTape & Reel (TR)
Package / CaseSON-6, 6-WDFN Exposed P.
Package/CaseWSON-6
PackagingReel
Product CategoriesSwitching Converters, R.
Product StatusActive
RoHs StatusRohs
Series-, TPS61170
Standard Package250
Supplier Device Package6-WSON (2x2)
Synchronous RectifierNo
Topologyboost,, Boost, Buck-Boo.
TypeStep-Up Regulators
Type of integrated circ.PMIC
Voltage - Input (Max)18V
Voltage - Input (Min)3V
Voltage - Output (Max)38V
Voltage - Output (Min/F.3V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomiodPartsTPS61170DRVT1.0125013750Texas Instruments1.01 @ 250
thumbzoomNewark33AH52822.4825010TEXAS INSTRUMENTS2.48 @ 250
thumbzoomTMETPS61170DRVT2.711100TEXAS INSTRUMENTS2.71 @ 10
RS Delivers661-6948P3.576110Texas Instruments3.576 @ 10
Digi-Key35071234.2015110Texas Instruments4.2015 @ 10
