Texas Instruments TXB0304RSVR

B0114E31ME

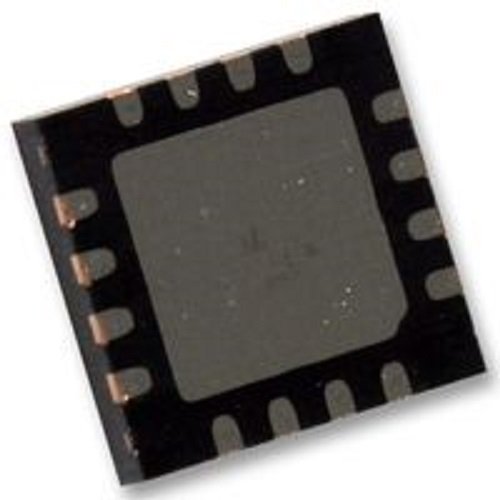

1PC X TXB0304RSVR TI TXB0304RSV IC V-LEVEL XLATR 4BIT 16UQFN

1PC X TXB0304RSVR TI TXB0304RSV IC V-LEVEL XLATR 4BIT 16UQFNzoom

Attributes

Key Value
Alternate Part No.595-TXB0304RSVR
Base Product NumberTXB0304
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
Channel TypeBidirectional
Channels per Circuit4
Data Rate100Mbps
Development KitTXB0304EVM
Factory Pack Quantity3000
FeaturesAuto-Direction Sensing
In-stock0
Input Signal-
ManufacturerTexas Instruments
Manufacturer Part No.TXB0304RSVR
Marking CodeZTJ
Maximum Operating Tempe.+ 85 C
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Circuits1
Operating Temperature-40?C ~ 85?C (TA)
Output Signal-
Output TypeTri-State, Non-Inverted
PackageTape & Reel (TR)
Package / Case16-UFQFN, UQFN-16
Package/CaseUQFN-16
PackagingReel
Product CategoriesTranslation - Voltage L.
Product CategoryTranslation - Voltage L.
Product StatusActive
Propagation Delay Time3.7 ns to 18.9 ns
RoHs StatusRohs
Series-, TXB0304
Supplier Device Package16-UQFN (2.6x1.8)
Supply Current5 uA
Supply Voltage - Max3.6 V
Supply Voltage - Min0.9 V
Translator TypeVoltage Level
TypeBidirectional Voltage L.
Voltage - VCCA0.9 V ~ 3.6 V
Voltage - VCCB0.9 V ~ 3.6 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark27AJ08961.16186TEXAS INSTRUMENTS1.16 @ 1
thumbzoomswatee.comTXB0304RSVR3.2713389Texas Instruments3.27 @ 1
Digi-Key276220913.14187Texas Instruments13.14 @ 1
