Tjernlund HS4

B00EZH68XC

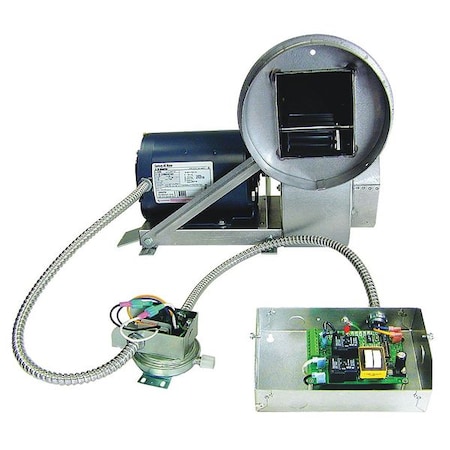

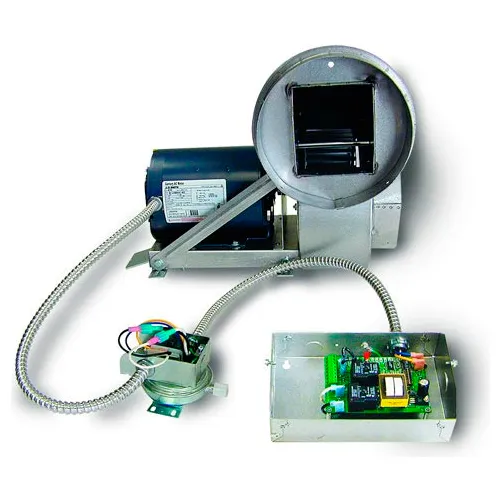

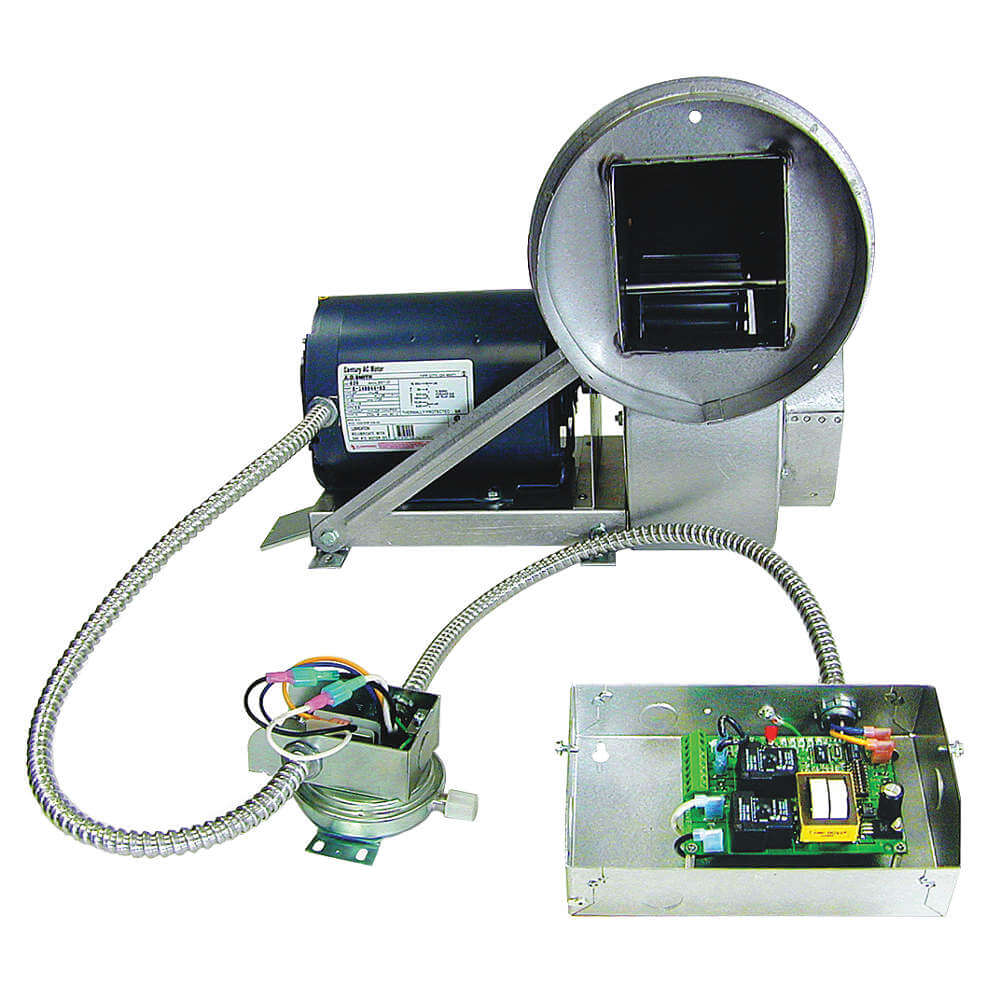

Tjernlund HS4 Gas Sidewall Power Venter Fan

Tjernlund HS4 Gas Sidewall Power Venter Fanzoom

Attributes

Key Value
Amps5.8
ApplicationUsed for Side Wall Vent.
Best Sellers RankSee Top 100 in Industri.
Blower TypeSidewall Power Venter
BrandTjernlund Products
BtuH Input1,100,000
CFM @ 0.000-In. SP900
CFM @ 0.500-In. SP775
CFM @ 0.700-In. SP750
CFM @ 1.000-In. SP62 5
CFM @ 1.40-In. SP400
Construction MaterialAluminized Steel Fan
Country of OriginUSA
Country of Origin (subj.United States
Current5.8 A
Current Stock3
Date First AvailableSeptember 5, 2013
Depth (In.)13 in
For Appliance TypeBoilers, Unit Heaters, .
For Fuel TypeLP, Natural Gas
For Maximum Pipe Length100 ft
For Pipe Diameter8 in to 12 in
GTIN080956216090
Height (In.)14 3/4 in
Housing MaterialSteel
HP1/3 hp
IncludesInterlock and Mounting .
Inlet and Outlet Dia. (.8
Inlet Diameter8 in
International ShippingNo
Is Discontinued By Manu.No
ItemInduced Draft Blower
Item model numberHS4
Lead TimeExpected to ship in 1-2.
ManufacturerTjernlund Products
Manufacturer Warranty L.1 yr
MarketCommercial, Residential
Max. Pipe Length 300100
Max. Pipe Length 400100
Maximum Heat Input1100 MBtuH
Maximum Heater BTU Inpu.1,200,000 BtuH
Maximum Heater BTU Inpu.Not Applicable
Maximum Motor Horsepower1/3 hp
Maximum Motor Speed1,725 RPM
Maximum Vent Pipe Diame.12 in
Minimum Vent Pipe Diame.8 in
Mounting OrientationHorizontal
MpnHS4
Nameplate Voltage115V AC
Nominal Voltage115V AC
Outlet Diameter8 in
Outlet HeightNot Applicable
Outlet ShapeRound
Outlet WidthNot Applicable
Overall Depth13 in
Overall Height14 3/4 in
Overall HxWxD14 3/4 in x 15 1/4 in x.
Overall Width15 1/4 in
Power Consumption700 W
Product Dimensions22.5 x 20.7 x 21.9 inch.
Product with faster shi.true
Shippingundefined (Fixed Shippi.
SKUZO-G7498391
TypeHigh Temperature
UPC080956216090
Vent Pipe Dia. (In.)8
Voltage115
Watts700 W
Width (In.)15 1/4 in
