Triad Magnetics TY-307P

mpnTY-307P
brandname: Triad Magnetics
manufacturername: Triad Magnetics

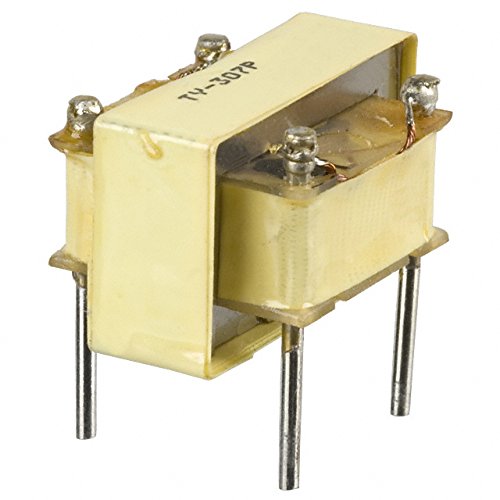

TY-307P Triad ics Transformers Pack of 10 (TY-307P)

TY-307P Triad ics Transformers Pack of 10 (TY-307P)

zoom

Brand: Triad Magnetics
PartNumber: TY-307P
Model: TY-307P
PackageQuantity: 10
Binding: Misc.
Manufacturer: Triad Magnetics
Label: Triad Magnetics

Attributes

Key	Value
Approval Agency	-
Category	Transformers
Configuration	Bobbin
DC Resistance (DCR) - P.	43Ohm
DC Resistance (DCR) - S.	61Ohm
Dielectric Strength	1500 V
Dimensions	0.781 in L x 0.67 in W .
Factory Pack Quantity	126
Frequency	300 to 3500 Hz
Frequency Range	300Hz-3.5kHz, 300Hz ~ 3.
Frequency Response	?0.5dB
Height	0.47 in
Height - Seated (Max)	0.470" (11.94mm)
Impedance - Primary (Oh.	600
Impedance - Secondary (.	600
In-stock	9744
Insertion Loss	1 dB, 1dB Typ
Length	0.781 in
Mfr	Triad Magnetics
Mounting Type	Through Hole, PCB Mount
Number of Outlets	2
Operating Temperature	-20?C ~ 85?C
Package	Bulk
Package/Case	SOP
Phase	1 Phase
Power Level	-45dB ~ 7dB
Power Rating	4000 mW
Primary Type	Audio Transformer
Product	Audio Transformers
Product Categories	Audio & Signal Transfor.
Product Status	Active
Product Type	Data / Voice Coupling A.
Return Loss	26dB Typ
RoHs Status	Rohs
Series	TY Series, TY
Shielding	Unshielded
Size / Dimension	0.670" L x 0.781" W (17.
Termination	Through Hole
Termination Style	PC Pin, Radial
Transformer Type	Data/Voice Coupling
Turns Ratio - Primary:S.	1:1.07
Voltage - Isolation	1500VAC
Weight	-
Width	0.67 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	TY-307P	4.06	1	24		TRIAD Magnetics		4.06 @ 1
	us.rs-online.com	70218119	4.49	1	22		Triad Magnetics		4.49 @ 1
	Newark	01H7035	4.67	1	In Stock		TRIAD MAGNETICS		4.67 @ 1
	Hotenda	H4245593	5.63	1	22		Triad Magnetics		5.63 @ 1
	Future Electronics	1792340	6.144	126	22		Triad Magnetics		6.144 @ 126
	Digi-Key	242652	6.34	1	22		Triad Magnetics		6.34 @ 1
	AmazonTP	B005S3Q83C	13.04	1	22	5	Triad Magnetics		13.04 @ 1
	AmazonUNK	B005S3Q83C	13.04	1	22		Triad Magnetics		13.04 @ 1
