Tritan 35BS13H X 5/8

B07B7NH29F

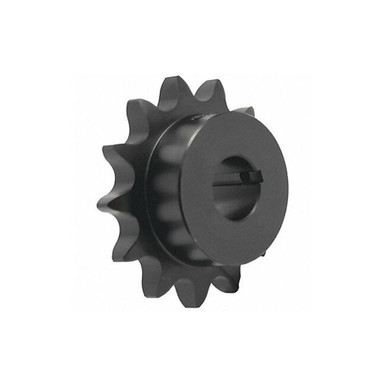

Sprocket, 1.732inOD, 0.375inPD, 5/8inBD, 13 (2 Pieces)

Sprocket, 1.732inOD, 0.375inPD, 5/8inBD, 13 (2 Pieces)zoom

Attributes

Key Value
ANSI Sprocket Number35
Bore Dia. (In.)5/8
Bore Dia. - Sprockets5/8 in
Bore Diameter5/8 in
Bore TypeFixed
BrandTritan
Chain Number35
ColorBlack Oxide
Country of Origin (subj.China
Current Stock22
FinishBlack Oxide
For Chain Number35
For Chain Pitch3/8 in
For Number of StrandsSingle
For Use WithRoller Chain
Hub Dia.1.25 in
Hub Dia. (In.)1-1/4
Hub Diameter1 1/4 in
Hub Projection1 in
Hub TypeOne Side
IncludesStandard Keyway and (2).
Industry Chain Pitch3/8 in
Industry Chain Size35
International ShippingNo
ItemSprocket
Item - Roller Chain Spr.Roller Chain Sprocket
Keyseat Size (In.)3/16 x 3/32
KeywayYes
Keyway Depth3/32 in
Keyway Size3/16 in x 3/32 in
Keyway Width3/16 in
Lead TimeExpected to ship in 1-2.
Length through Bore3/4 in, 0.750"
Length through Bore (In.3/4
MaterialSteel
Material - SprocketsSteel
Maximum Bore Diameter5/8 in
Mpn35BS13H X 5/8
Number of Chain RowsSingle
Number of Set Screws2
Number of Teeth13
Number of Teeth - Sproc.13
Outside Dia.1.732 in
Outside Dia. (In.)1.732
Outside Diameter2 in
Pitch Dia.0.375 in
Pitch Dia. (In.)0.375
Pitch Diameter1.567 in
Set Screw Dia. (In.)1/4
Set Screw Hole Dia.0.25 in
Set Screw LocationOne Setscrew Over The K.
Set Screw Size1/4 in
Setscrew LocationOne Setscrew Over The K.
SKUZO-G2681056
Sprocket Bore TypeFixed Bore
Sprocket Hub TypeType B
StandardsANSI B29.1, BIS
SubCategoryPower Transmission
Teeth Heat TreatmentHardened Teeth
Tooth Width0.168 in
TypeFinished Bore
UPC888569090522
Width Across Tooth SetsNot Applicable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG26810567.991In StockTritan0.217.99 @ 1
AmazonSCB00VI4NZR210.691In StockTritan10.69 @ 1
grainger.caWWG36GA2313.086282181In StockTRITAN0.2113.08628218 @ 1
thumbzoomsimsupply.comZO-G268105617.32122Tritan17.32 @ 1
thumbzoomRaptor SuppliesAH6TYY18.3915811In StockTRITAN18.391581 @ 1
