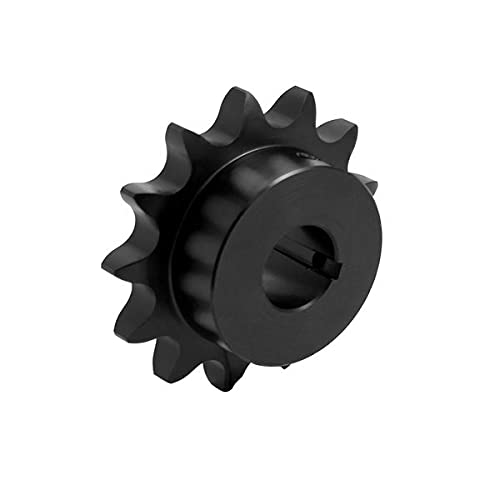

Tritan 35BS16H X 5/8

B07WVW15TF

Sprocket, 2.126Inod, 0.375Inpd, 5/8Inbd, 16

Sprocket, 2.126Inod, 0.375Inpd, 5/8Inbd, 16zoom

Attributes

Key Value
ANSI Sprocket Number35
Bore Dia. (In.)5/8
Bore Dia. - Sprockets5/8 in
Bore Diameter5/8 in
Bore TypeFixed
Chain Number35
Country of Origin (subj.China
FinishBlack Oxide
For Chain Number35
For Chain Pitch3/8 in
For Number of StrandsSingle
For Use WithRoller Chain
Hub Dia.1.469 in
Hub Dia. (In.)1-15/32
Hub Diameter1 1/2 in
Hub Projection1 in
Hub TypeOne Side
IncludesStandard Keyway and (2).
Industry Chain Pitch3/8 in
Industry Chain Size35
ItemSprocket
Item - Roller Chain Spr.Roller Chain Sprocket
Keyseat Size (In.)3/16 x 3/32
Keyway Depth3/32 in
Keyway Size3/16 in x 3/32 in
Keyway Width3/16 in
Length through Bore3/4 in
Length through Bore (In.3/4
MaterialSteel
Material - SprocketsSteel
Maximum Bore Diameter5/8 in
Number of Chain RowsSingle
Number of Set Screws2
Number of Teeth16
Number of Teeth - Sproc.16
Outside Dia.2.126 in
Outside Dia. (In.)2.126
Outside Diameter2 in
Pitch Dia.0.375 in
Pitch Dia. (In.)0.375
Pitch Diameter1.922 in
Set Screw Dia. (In.)1/4
Set Screw Hole Dia.0.25 in
Set Screw LocationOne Setscrew Over The K.
Setscrew LocationOne Setscrew Over The K.
Sprocket Bore TypeFixed Bore
Sprocket Hub TypeType B
StandardsANSI B29.1, BIS
Teeth Heat TreatmentHardened Teeth
Tooth Width0.168 in
TypeFinished Bore
Width Across Tooth SetsNot Applicable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG26809869.2422Tritan0.359.24 @ 2
Grainger36GA3214.39130TRITAN14.39 @ 2
thumbzoomRaptor SuppliesAH6TZH23.363788512TRITAN23.3637885 @ 2
