| Bore Dia. (In.) | 0.315 in |
| Bore Dia. (mm) | 8mm |
| Bore Diameter | 8 mm |
| Cage Material | Steel |
| Dynamic Load Capacity (Lb.) | 888 |
| Dynamic Load Capacity (N) | 3,810 N |

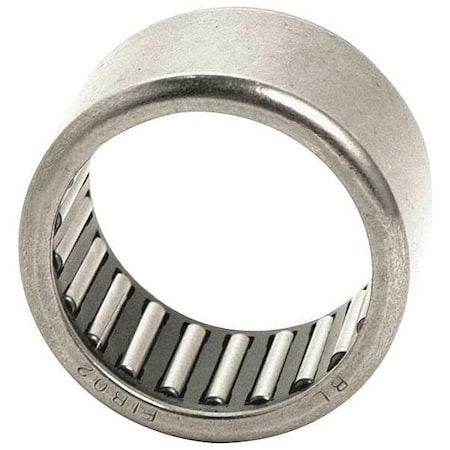

| Item | Needle Roller Bearing |
| Lubricant Material | Grease, Oil |
| Lubrication Openings | Oil Hole |
| Max. RPM | 29,900 RPM |
| Maximum Speed | 20,000 RPM Grease, 31,000 RPM Oil |
| Number of Rows | One |
| Outside Dia. (In.) | 0.472 in |
| Outside Dia. (mm) | 12mm |
| Outside Diameter | 12 mm |
| Overall Width | 10 mm |
| Roller Material Grade | ANSI 52100 |
| Seal Material | Not Applicable |
| Static Load Capacity (Lb.) | 915 |
| Static Load Capacity (N) | 3,930 N |
| Temp. Range (F) | -25 to +225? F |
| Type | Drawn Cup |
| Width (In.) | 0.394 in |
| Width (mm) | 10mm |
