- mpnSBFL202-10G
- brandname: TRITAN
- manufacturername: TRITAN

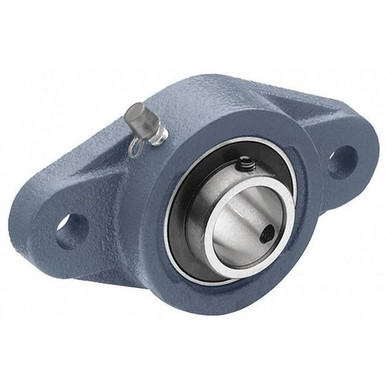

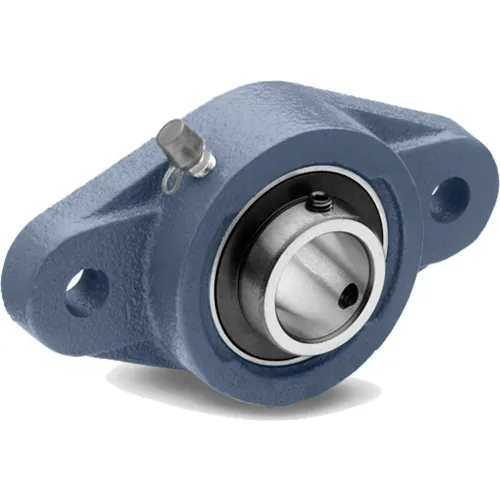

SBFL202-10G - TRITAN - Factory New!
- Brand: Tritan
- PartNumber: SBFL202-10G
- PackageQuantity: 1
- Manufacturer: TRITAN
- Label: TRITAN
Attributes
| Key | Value |
|---|
| Bearing Housing Materia. | Cast Iron |
| Bearing Insert Material | 52100 Steel, Alloy Steel |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Lubrication | Shell Alvania RL2 or NL. |
| Bearing Material Grade | 52100 |
| Bolt Hole Center-to-Cen. | 3.0000" |
| Bolt Size | 3/8 in |
| Bore Dia. | 0.625" |
| Bore Diameter | 5/8 in |
| Bore Type | Cylindrical |
| Brand | Tritan |
| Closure | Double Sealed |
| Color | Grey |
| Current Stock | 97 |
| Dynamic Load Capacity | 2146 Lbf, 2,158 lbf |
| Features | Narrow Inner Ring Beari. |
| Finish | Painted |
| Flange Thickness | 0.375 in |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Rhombus |
| Included Bearing | SB202-10G |
| International Shipping | No |
| Item | 2 Bolt Flange Bearing, . |
| Lead Time | Expected to ship in 1-2. |
| Locking Type | Set Screw |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Mount Hole Center-to-Ce. | 3 in |
| Mount Hole Size | 15/32 in |
| Mounting Bolt Size | 3/8 in |
| Mpn | SBFL202-10G |
| Number of Mount Holes | 2 |
| Overall Height | 1.078 in, 31 mm |
| Overall Length | 3.875 in, 99 mm |
| Overall Width | 2.25 in, 57 mm |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Series | SBFL |
| Shaft Locking Type | Set Screw, Set Screws |
| SKU | ZO-G9564116 |
| Standards | ISO, AFBMA, AFBMA, ISO |
| Static Load Capacity | 1034 Lbf |
| Static Radial Load Capa. | 1,034 lbf |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Temp. Range | -4 to +248? F |
| UPC | 888569038746 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G9564116 | 17.35 | 1 | 78 | | Tritan | 0.77 | 17.35 @ 1 |
| grainger.ca | WWG36UX94 | 24.74272654 | 1 | In Stock | | TRITAN | 0.77 | 24.74272654 @ 1 |
| AmazonSC | B077QPPPZL | 25.88 | 1 | In Stock | | Tritan | | 25.88 @ 1 |
 | simsupply.com | ZO-G9564116 | 26.51 | 1 | 97 | | Tritan | | 26.51 @ 1 |
 | Global Industrial | WBB1873268 | 27.38 | 1 | In Stock | | Tritan | | 27.38 @ 1 |
 | Raptor Supplies | AH7JVT | 32.4590175 | 1 | In Stock | | TRITAN | | 32.4590175 @ 1 |
