- mpnUCFL205-14
- brandname: TRITAN
- manufacturername: TRITAN

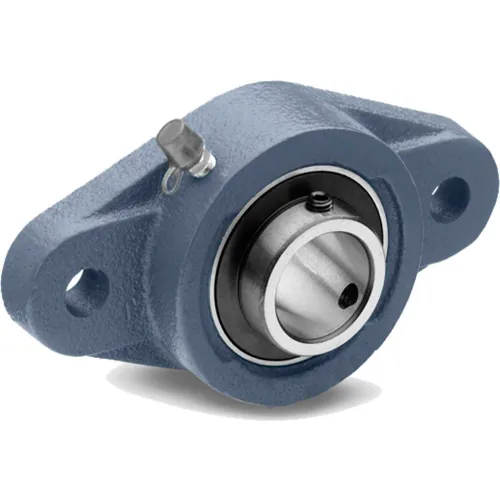

UCFL205-14 - TRITAN - Factory New!
- Brand: Tritan
- PartNumber: UCFL205-14
- PackageQuantity: 1
- Manufacturer: TRITAN
- Label: TRITAN
Attributes
| Key | Value |
|---|
| Bearing Housing Materia. | Cast Iron |
| Bearing Insert Material | 52100 Steel, Alloy Steel |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Lubrication | Shell Alvania RL2 or NL. |
| Bearing Material Grade | 52100 |
| Bolt Hole Center-to-Cen. | 3.8976" |
| Bolt Size | 3/8 in |
| Bore Dia. | 0.875" |
| Bore Diameter | 7/8 in |
| Bore Type | Cylindrical |
| Brand | Tritan |
| Closure | Double Sealed |
| Color | Grey |
| Current Stock | 197 |
| Dynamic Load Capacity | 3147 Lbf, 3,147.33 lbf |
| Features | Anti-Rotation Device, C. |
| Finish | Painted |
| Flange Thickness | 0.5 in |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Rhombus |
| Included Bearing | UC205-14 |
| International Shipping | No |
| Item | 2 Bolt Flange Bearing, . |
| Lead Time | Expected to ship in 1-2. |
| Locking Type | Set Screw |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Mount Hole Center-to-Ce. | 3 57/64 in, 3.89 in |
| Mount Hole Size | 7/16 in |
| Mounting Bolt Size | 3/8 in |
| Mpn | UCFL205-14 |
| Number of Mount Holes | 2 |
| Overall Height | 1.406 in, 35.8 mm |
| Overall Length | 130 mm, 5.125 in |
| Overall Width | 68 mm, 2.687 in |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Series | UCFL |
| Shaft Locking Type | Set Screw, Set Screws |
| SKU | ZO-G1948795 |
| Standards | ISO, AFBMA, AFBMA, ISO |
| Static Load Capacity | 1764 Lbf |
| Static Radial Load Capa. | 1,764.75 lbf |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Temp. Range | -4 to +248? F |
| UPC | 888569051271 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1948795 | 17.55 | 1 | 232 | | Tritan | 1.39 | 17.55 @ 1 |
 | simsupply.com | ZO-G1948795 | 27.81 | 1 | 197 | | Tritan | | 27.81 @ 1 |
 | Global Industrial | WBB1873345 | 29.12 | 1 | In Stock | | Tritan | | 29.12 @ 1 |
| grainger.ca | WWG36UY66 | 38.74352428 | 1 | In Stock | | TRITAN | 1.39 | 38.74352428 @ 1 |
 | Raptor Supplies | AH7JYQ | 51.2751915 | 1 | In Stock | | TRITAN | | 51.2751915 @ 1 |
