- mpnUCFL207-20
- brandname: TRITAN
- manufacturername: TRITAN

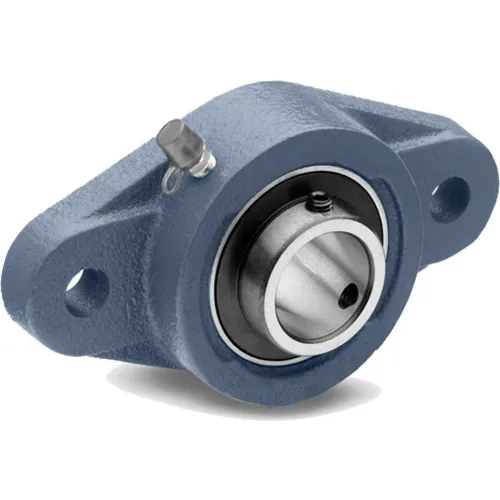

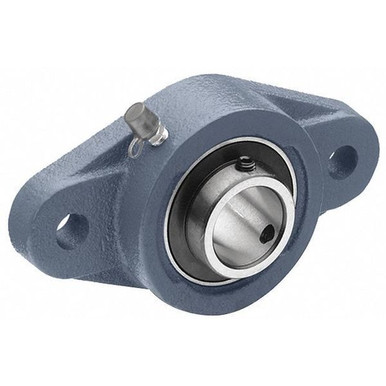

UCFL207-20 - TRITAN - Factory New!
- Brand: Tritan
- PartNumber: UCFL207-20
- PackageQuantity: 1
- Manufacturer: TRITAN
- Label: TRITAN
Attributes
| Key | Value |
|---|
| Bearing Housing Materia. | Cast Iron |
| Bearing Insert Material | 52100 Steel, Alloy Steel |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Lubrication | Shell Alvania RL2 or NL. |
| Bearing Material Grade | 52100 |
| Bolt Hole Center-to-Cen. | 5.1181" |
| Bolt Size | 1/2 in |
| Bore Dia. | 1.25" |
| Bore Diameter | 1 1/4 in |
| Bore Type | Cylindrical |
| Brand | Tritan |
| Closure | Double Sealed |
| Color | Grey |
| Current Stock | 97 |
| Dynamic Load Capacity | 5,777.59 lbf, 5777 Lbf |
| Features | Anti-Rotation Device, C. |
| Finish | Painted |
| Flange Thickness | 0.546 in |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Rhombus |
| Included Bearing | UC207-20 |
| International Shipping | No |
| Item | 2 Bolt Flange Bearing, . |
| Lead Time | Expected to ship in 1-2. |
| Locking Type | Set Screw |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Mount Hole Center-to-Ce. | 5.125 in |
| Mount Hole Size | 5/8 in |
| Mounting Bolt Size | 1/2 in |
| Mpn | UCFL207-20 |
| Number of Mount Holes | 2 |
| Overall Height | 44.4 mm, 1.75 in |
| Overall Length | 161 mm, 6.343 in |
| Overall Width | 90 mm, 3.546 in |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Series | UCFL |
| Shaft Locking Type | Set Screw, Set Screws |
| SKU | ZO-G9447155 |
| Standards | ISO, AFBMA, AFBMA, ISO |
| Static Load Capacity | 3439 Lbf |
| Static Radial Load Capa. | 3,439.58 lbf |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Temp. Range | -4 to +248? F |
| UPC | 888569051370 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G9447155 | 26.15 | 1 | 146 | | Tritan | 2.59 | 26.15 @ 1 |
 | simsupply.com | ZO-G9447155 | 36.92 | 1 | 97 | | Tritan | | 36.92 @ 1 |
 | Global Industrial | WBB1873324 | 47.82 | 1 | In Stock | | Tritan | | 47.82 @ 1 |
| grainger.ca | WWG36UY75 | 51.25641972 | 1 | In Stock | | TRITAN | 2.59 | 51.25641972 @ 1 |
 | Raptor Supplies | AH7JZA | 73.834488 | 1 | In Stock | | TRITAN | | 73.834488 @ 1 |
