Tsubaki 40B12F-1

B000CD77NS

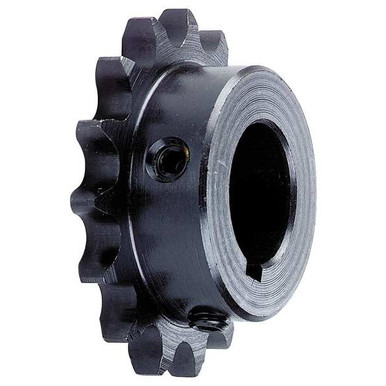

Sprocket, 2.170 Od, 40

Sprocket, 2.170 Od, 40zoom

Attributes

Key Value
Bore Dia. (In.)1
Bore Dia. - Sprockets1 in
Bore Diameter1 in
Bore TypeFixed
BrandTsubaki
Chain Number40
Current Stock197
FinishBlack Oxide
For Chain Pitch1/2 in
For Number of StrandsSingle
For Pitch TypeSingle Pitch
Hub Diameter1 9/16 in
Hub Projection1 in
Hub TypeOne Side
IncludesStandard Keyway and 2 S.
Industry Chain Size40
International ShippingNo
ItemSingle Strand Sprocket
Keyseat Size (In.)1/4 x 1/8
KeywayYes
Keyway Depth1/8 in
Keyway Size1/4 in x 1/8 in
Keyway Width1/4 in
Lead TimeExpected to ship in 1-2.
Length through Bore7/8 in
MaterialSteel
Material - SprocketsSteel
Material Grade1045
Maximum Bore Diameter1 in
Mpn40B12F-1
Number of Chain RowsSingle
Number of Set Screws2
Number of Teeth12
Number of Teeth - Sproc.12
Outside Dia.2.17 in
Outside Dia. (In.)2.170
Outside Diameter2 in, 2.17 in
Pitch Dia.1.932 in
Pitch Dia. (In.)1.932
Pitch Diameter1.932 in
Resistance PropertiesCorrosion Resistant
Set Screw Dia. (In.)5/16
Set Screw Hole Dia.0.313 in
Set Screw Location90 Degrees from Keyway,.
Set Screw Size5/16 in
SKUZO-G0843202
StandardsANSI
SubCategoryPower Transmission
Teeth Heat TreatmentHardened Teeth
Tooth Width0.284 in
Width Across Tooth SetsNot Applicable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG084320215.951249Tsubaki0.315.95 @ 1
grainger.caWWG1L11218.246762841In StockTSUBAKI0.318.24676284 @ 1
thumbzoomsimsupply.comZO-G084320225.371197Tsubaki25.37 @ 1
Grainger1L11226.512080TSUBAKI26.5 @ 1
motionindustries.com0016786630.231In StockTsubaki (UST)30.23 @ 1
thumbzoomRaptor SuppliesAB2BQR33.19646851In StockTSUBAKI33.1964685 @ 1
