Turck BI 4-M12-VN6X-H1141

B00DEE6ZAI

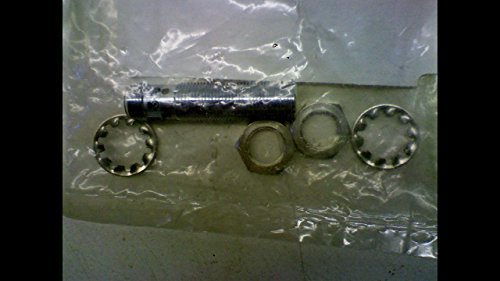

TURCK BI 4-M12-VN6X-H1141 Sensor; 12 mm; 10 to 30 VDC; 200 mA (Max.); Inductive; CPB (Housing);

TURCK BI 4-M12-VN6X-H1141 Sensor; 12 mm; 10 to 30 VDC; 200 mA (Max.); Inductive; CPB (Housing);zoom

Attributes

Key Value
Alternate Mfr Part Numb.1643200
Body CompositionMetallic
Body StyleCylindrical
Connection TypeM12 Connector, M12 4-Pin
Current Consumption200 mA (Max.)
Diameter12 mm
Dimensions2.047 L in
Family SeriesTurck Inductive Proximi.
Gross Weight0.1 lbs
Housing MaterialChrome Plated Brass
IP RatingIP67
Item NumberBI4-M12-VN6X-H1141
ManufacturerTurck
Manufacturer Part Number1643200
Max Leakage Current0.1 mA
Max Load Current0.2 A
Maximum Operating Tempe.70 C
Measurement Range4 mm
Minimum Operating Tempe.-25 C
Mounting StyleFlush Shielded
Mounting TypeM12 x 1 Threaded
Net Weight0 lbs
Nominal Voltage12 VDC, 24 VDC
Number of Wires4
Operating Voltage Range10-30 VDC
OutputNPN
Output TypeNO/NC NPN
Power TypeDC
Primary TypeInductive Proximity Sen.
Range4 mm
Reverse Polarity Protec.Yes
RoHSYes
Sensing TypeEnd
SeriesBI 4-M12 Series
ShieldingShielded
Short Circuit ProtectionYes
StandardsIP 67 Protection
Status IndicatorYes
Supply Voltage10-30 VDC
Switching Current200 mA
Switching Frequency2 kHz
TerminationWired Connector

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNex InstrumentBI4-M12-VN6X-H114128.01In StockTURCK28.0 @ 1
thumbzoomCarlton Bates Company78071642168115.511In StockTURCK115.51 @ 1
thumbzoomGalcoBI4-M12-VN6X-H1141-TURK117.041In StockTurck0.1117.04 @ 1
Newark41M2081128.41In StockTURCK128.4 @ 1
us.rs-online.com70034975147.5815TURCK147.58 @ 1
RS Delivers832-1002160.981In StockTurck160.98 @ 1
thumbzoomMRO Supply5772769170.51In Stock14Turck170.5 @ 1
