TE Connectivity 3-1393127-1

B00KSP6IXK

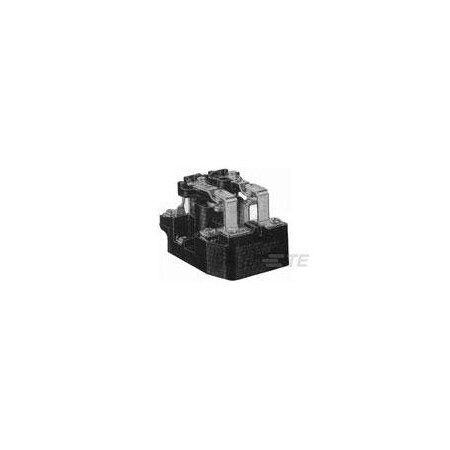

3-1393127-1, Power Relay 480VAC 25A DPDT(85.73x63.8x63.5) mm Screw Mount (1 Items)

3-1393127-1, Power Relay 480VAC 25A DPDT(85.73x63.8x63.5) mm Screw Mount (1 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.3-1393127-1
Alternate Part No.655-PRD-11AY0-480
BrandTE Connectivity / P&B
Coil Current22 mA
Coil InsulationClass B
Coil Resistance1.2 kOhms, 1200 Ohms, 4.
Coil TerminationScrew
Coil TypeNon-Latching, Non Latch.
Coil Voltage480VAC, 48 VAC, 480 VAC
Contact Current Rating25 A
Contact FormDPDT, DPDT (2 Form C)
Contact MaterialSilver, Silver (Ag)
Contact Rating (Current)25 A
Contact TerminationScrew
Contact Voltage Rating300 VAC
Control Voltage480
Country of Origin (subj.China
Current Rating25 A
Dimensions3.376 L x 2.513 W x 2.5.
Features-
FunctionGeneral Purpose
Height63.5 mm
Length85.7 mm
ManufacturerTE Connectivity
Manufacturer Part No.PRD-11AY0-480
MfrTE Connectivity Potter .
Mounting StylePanel
Mounting TypePanel Mount, Chassis Mo.
Must Operate Voltage408 VAC
Must Release Voltage48 VAC
Operate Time40 ms
Operating Temperature-55?C ~ 45?C
Part # Aliases3-1393127-1
Part StatusActive
Power Consumption9.8 VA
Primary TypePower Relays
ProductPower Relays
Product CategoryGeneral Purpose Relays
Product HeaderPRD Series Heavy Duty O.
Relay TypeElectromechanical, Gene.
Release Time20 ms
Seal Rating-
SeriesPRD, PRD Series
StandardsUL ; CSA
Switching Voltage240VAC - Nom
TerminationScrew
Termination StyleScrew, Screw Terminal
TypeStandard
Voltage Rating240 V
Width63.8 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comPRD-11AY0-48045.9195TE Connectivity / P&B Brand45.9 @ 10
thumbzoomDigi-KeyPB1342-ND66.42110TE Connectivity Potter & Brumfield Relays66.42 @ 10
thumbzoomswatee.comPRD-11AY0-48066.92110TE Connectivity66.92 @ 10
WaldomTE CONNECTIVITY POTTER-BRUMFIELD PRD-11AY0-48072.98110TE CONNECTIVITY / POTTER-BRUMFIELD72.98 @ 10
AmazonSCB00DECX9N694.28110TE Connectivity94.28 @ 10
thumbzoomNewark17M153695.05120POTTER&BRUMFIELD - TE CONNECTIVITY95.05 @ 10
us.rs-online.com7019870995.45136TE Connectivity95.45 @ 10
thumbzoomZoroG100984238110.11110Te Connectivity110.11 @ 10
