- mpn5440H
- brandname: U.S. Motors
- manufacturername: U.S. Motors

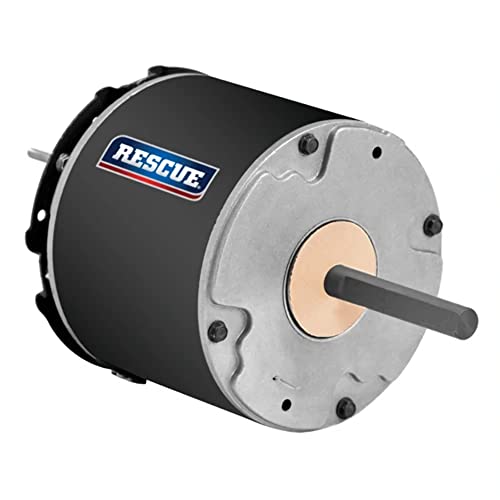

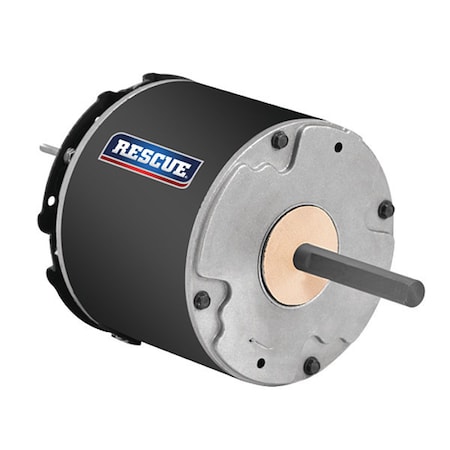

5440H US Motors - Nidec - Emerson Motor Condenser
- Brand: US Motors
- PartNumber: 5440H
- PackageQuantity: 1
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| AMP | 0.8 |
| Amps | .8 |
| Batteries Required? | No |
| Bearing Type | Ball |
| Bearings | Ball |
| Best Sellers Rank | #2,591,544 in Tools & H. |
| Blower Type | Direct Drive |
| Capacitor | 5MFD/370VAC |
| Collection | Rescue? |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Date First Available | July 18, 2017 |
| Diameter | 5 in |
| Drive End Flange Type | Standard |
| Enclosure | TE, Totally Enclosed Ai. |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 11.00 |
| Family Series | US Motors Motors |
| FL Amps | .8 |
| Frame | 42Y |
| Frame Size | 42 |
| Frequency | 60 Hz |
| Gross Weight | 9.225 lbs |
| Hertz | 60 |
| Horsepower | 1/8 hp |
| HP | 0.125, 1/8 |
| Hz | 60 |
| Insulation Class | B |
| Item | Motor,1/8,1/12HP,1075RP. |
| Item Number | 5440H |
| Item Package Quantity | 1 |
| Item Weight | 7.8 ounces |
| Length | 7-3/50 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | K048MAH0158012B |
| Manufacturer Part Number | 5440H |
| Material | Steel |
| Maximum Ambient Tempera. | 70? C |
| Maximum Temperature | 70 |
| Model Number | K048MAH0158012B |
| Motor Enclosure | Totally Enclosed Air Ov. |
| Mounting | Footless |
| Mounting Type | Footless |
| NEMA Frame | 42Y |
| Net Weight | 9.225 lbs |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Poles | 6 |
| Number of Speeds | 1, 3 |
| Overload Protection | Automatic |
| Part Number | 5440H |
| Phase | 1, Single Phase |
| Power Source | Electric |
| Product Type | Condenser Motor, Fracti. |
| Product with faster shi. | true |
| Rotation | Reversible |
| RPM | 1075, 1,075 RPM |
| RPM Range | 900-1150 |
| Service Factor | 1.00 |
| Ship Weight | 8 lbs. |
| Shipping | undefined (Fixed Shippi. |
| Speed (RPM) | 1075 |
| Temperature Range | -29 to 70 Deg C |
| Thermal Protection | Automatic |
| UL Listed | Yes |
| Voltage | 208V, 230V |
| Voltage (AC) | 208-230 VAC |
| Volts | 208, 230, 208/230V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | homeessentialsdirect.com | 5440H | 81.52 | 1 | In Stock | | US Motors | 0.4875 | 81.52 @ 1 |
 | Zoro | G0917680 | 116.15 | 1 | In Stock | | U.S. Motors | 7.95 | 116.15 @ 1 |
 | emotorpro.com | 5440H | 121.57 | 1 | In Stock | | U.S. Motors | 8.0 | 121.57 @ 1 |
 | motorsandcontrol.com | 5440H | 144.84 | 1 | In Stock | | US Motors (Nidec) | 11.0 | 144.84 @ 1 |
 | Galco | 5440H-USM | 148.12 | 1 | In Stock | | US Motors | 9.225 | 148.12 @ 1 |
| ferguson.com | 4632182 | 186.24 | 1 | In Stock | | US Motors | | 186.24 @ 1 |
| motionindustries.com | 05161557 | 215.13 | 1 | In Stock | | US Motors (Nidec) | | 215.13 @ 1 |
| uri.com | 5440H | 273.32 | 1 | In Stock | | U.S. Motors | 10.0 | 273.32 @ 1 |
