- mpnWD10P2DC
- brandname: U.S. Motors
- manufacturername: U.S. Motors

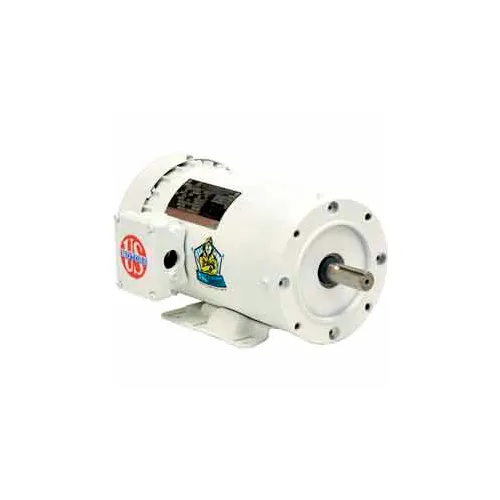

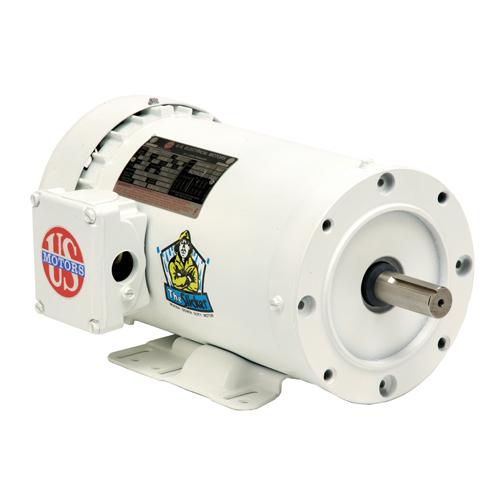

U.S. Motors US Motors Washdown, 3 Phase, 10 HP, 3-Phase, 1760 RPM Motor, WD10P2DC
- Brand: US Motors
- PartNumber: WD10P2DC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 26.5-23.9/11.9 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 91.7% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 140.80 |
| Family Series | US Motors Motors |
| FL Amps | 26.5-23.9/11.9 |
| FL Efficiency | 91.7 |
| Frame | 215TC |
| Frequency | 60 Hz |
| Gross Weight | 128 lbs |
| Hertz | 50, 60 |
| Horsepower | 10 hp |
| HP | 10 |
| Hz | 50/60 |
| Insulation Class | F |
| Item | Motor,3PH,10HP,1800,208. |
| Item Number | WD10P2DC |
| Kilowatts | 7.5 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DD61 |
| Manufacturer Part Number | WD10P2DC |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DD61 |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| NEMA Frame | 215TC |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | WD10P2DC |
| Phase | 3 |
| Product Type | Washdown Duty, Three Ph. |
| Rotation | Reversible |
| RPM | 1760, 1,760 RPM |
| Service Factor | 1.15 |
| Ship Weight | 128 lbs. |
| Speed (RPM) | 1760 |
| Voltage | 190V, 230V, 380V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0401360 | 1170.0 | 1 | In Stock | | U.S. Motors | 128.0 | 1170.0 @ 1 |
 | MRO Supply | 6424525 | 1278.82 | 1 | In Stock | | US Motors | | 1278.82 @ 1 |
 | Global Industrial | WBB466109 | 1369.0 | 1 | In Stock | 17 | US Motors | | 1369.0 @ 1 |
 | emotorpro.com | WD10P2DC | 1430.68 | 1 | In Stock | | U.S. Motors | 128.0 | 1430.68 @ 1 |
 | National Supply Network | B466109 | 1456.49 | 1 | In Stock | | US MOTORS | | 1456.49 @ 1 |
 | Galco | WD10P2DC-USM | 1504.98 | 1 | In Stock | | US Motors | 128.0 | 1504.98 @ 1 |
 | motorsandcontrol.com | WD10P2DC | 1504.98 | 1 | In Stock | | US Motors (Nidec) | 140.8 | 1504.98 @ 1 |
| motionindustries.com | 04487535 | 2804.54 | 1 | In Stock | | US Motors (Nidec) | | 2804.54 @ 1 |
