- mpnHDD-60-15-P
- brandname: VESTIL
- manufacturername: VESTIL

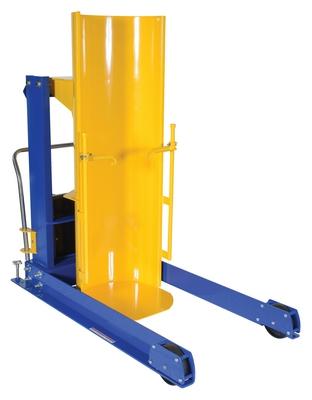

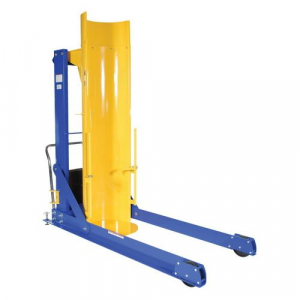

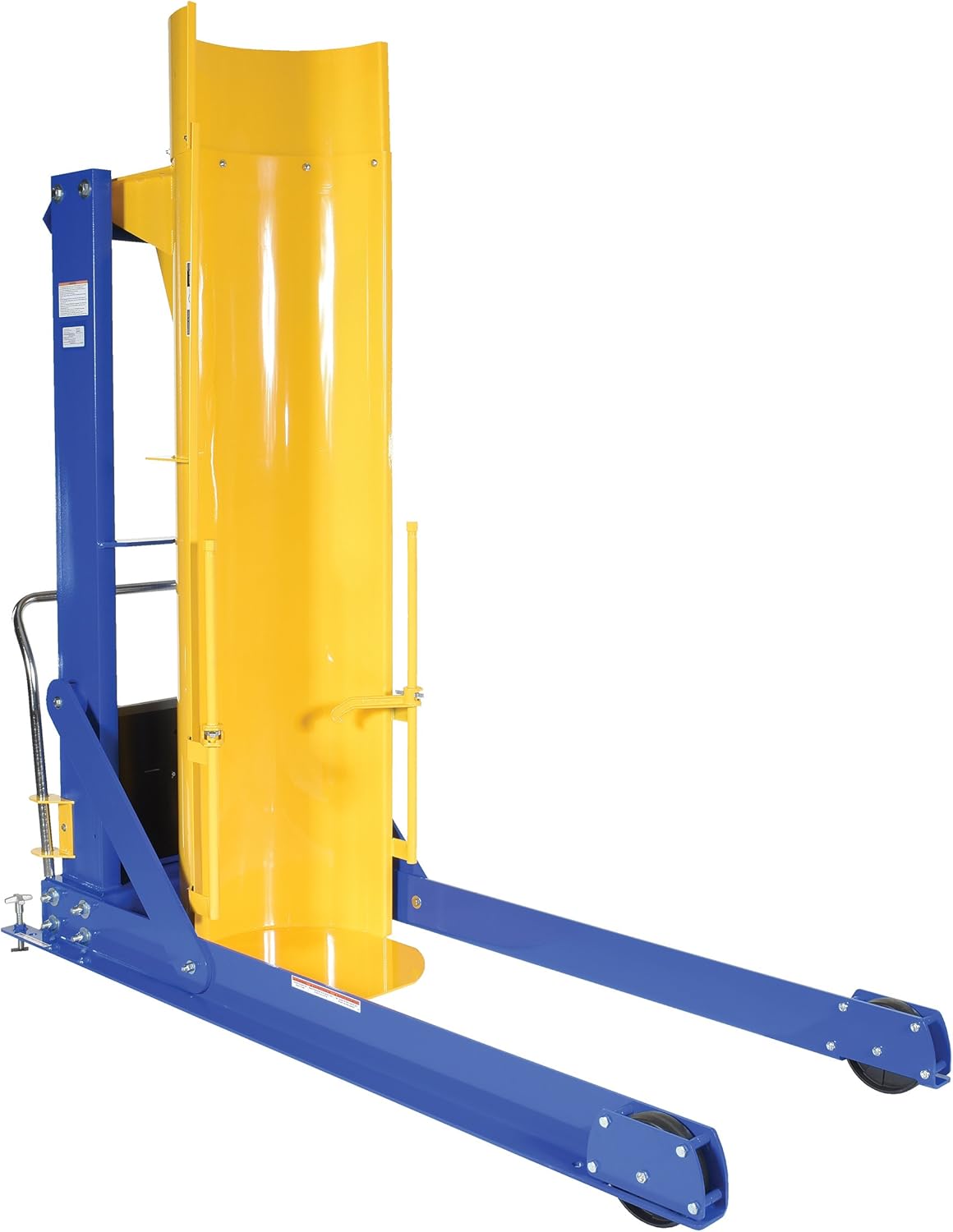

Vestil HDD-60-15-P Portable Hydraulic Drum Dumper, 1500 lb Capacity, 60" Dumping Height, 137" Height Clearance, 30 and 55 gal, Blue Frame/Yellow Chute
- Brand: Vestil
- PartNumber: HDD-60-15-P
- Model: HDD-60-15-P
- Color: Blue Frame/Yellow Chute
- Size: S
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Vestil
- Label: Vestil
Attributes
| Key | Value |
|---|
| Accepts | 30 and 55-gallon drums |
| ASIN | B0027YKQOM |
| Assembly | Fully Assembled |
| Assembly Required | No |
| Batteries Required? | No |
| Body Material | Steel |
| Caster Material | Glass Filled Nylon |
| Caster Type | (2) Rigid; (2) Swivel |
| Casters | 8 in x 3 in Phenolic |
| Chute Diameter (in.) | 24 |
| Chute Material | Steel |
| Clearance Between Legs | 28 1/2 in |
| Construction | Steel |
| Country of Origin (subj. | United States |
| Cylinder Diameter (in.) | 2-1/2 |
| Dia. | 24 in |
| Dispensing Height | 60 in |
| Drum Capacity | 55 gal, 30 |
| Drum Rotation | 135 Degrees |
| Drum Rotation (deg.) | 135 |
| Drum Securing Mechanism | Clamp |
| Dump Angle | 45 Degrees |
| Dump Angle (deg.) | 45 |
| Dump Height | 60 in |
| Dump Height (in.) | 60 |
| Dumper Control Cord Len. | 8 |
| Electrical Connection | Power Cord |
| Features | Adjustable Height Clamp. |
| Finish | Powder Coated |
| For Container Type | Drums |
| For Drum Capacity | 30 gal, 55 gal |
| For Drum Material | Fiber, Plastic, Metal |
| For Maximum Drum Diamet. | 24 in |
| For Use With | 30 and 55 gal Drums |
| Frequency | 60 Hz |
| Housing Color | Blue, Yellow |
| Housing Finish | Powder Coated |
| Housing Material | Steel |
| Includes | 115V Single Phase, 3/4 . |
| Includes Battery | No |
| Is Discontinued By Manu. | No |
| Item | Drum Dumper |
| Item model number | HDD-60-15-P |
| Item Package Quantity | 1 |
| Leg Clearance | 28 1/2 in |
| Level Height | 84 1/2 in |
| Level Height (in.) | 84-1/2 |
| Load Capacity | 1,500 lb |
| Lowest Position of Jaws | 27 in |
| Manufacturer | Vestil, Vestil Manufact. |
| Manufacturer Warranty L. | 1 yr Limited |
| Material | Steel |
| Max. Lift | 137 1/4 in |
| Maximum Motor Horsepower | 3/4 hp |
| Motor (HP) | 3/4 |
| Motor (hz) | 60 |
| Motor HP | 3/4 hp |
| Motor Style | 56 Frame |
| Motor Type | AC Motor |
| Number of Drums | 1 |
| Operating Voltage | 115V AC |
| Overall Depth | 80 in |
| Overall Height | 85 in |
| Overall Length | 80 in |
| Overall Width | 36 in |
| Overall WxDxH | 36 in x 80 in x 85 in |
| Part Number | HDD-60-15-P |
| Phase | Single |
| Portability | Casters |
| Power Cord Length | 8 ft |
| Power Cord Length (feet) | 8 |
| Power Source | Hydraulic |
| Product Type | Drum Dumper |
| Raise Time | 42 in/sec |
| Raise Time (sec.) | 42 |
| Rotated Height | 137 1/4 in |
| Rotation | 135 Degrees |
| Rotation Angle | 135 Degrees |
| Rotation Height | 137 in |
| Rotation Height Clearan. | 137-1/4 |
| Single Phase (volts) | 115 |
| Standards | OSHA |
| Total Raise Time | 42 sec |
| Type | Portable |
| Uniform Capacity (pound. | 1,500 |
| UNSPSC Code | 30000000 |
| Vertical Lift | 137 in |
| Voltage | 115 |
| Weight Capacity | 1,500 lb |
| Wheel Material | Polyurethane |
| Wheel Type | Caster |
| Wheels | 5 in x 2 in Polyurethane |
