GENERAL SEMICONDUCTOR (VISHAY) MUR2020CTPBF

B0748M3YBH

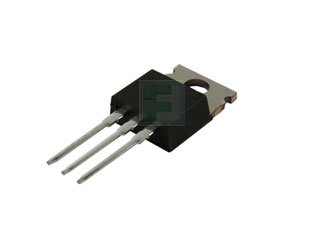

GENERAL SEMICONDUCTOR (VISHAY) MUR2020CTPBF MUR2020 Series 20 A 200 V 35 ns Flange Mount Ultrafast Rectifier - TO-220AB - 10 item(s)

GENERAL SEMICONDUCTOR (VISHAY) MUR2020CTPBF MUR2020 Series 20 A 200 V 35 ns Flange Mount Ultrafast Rectifier - TO-220AB - 10 item(s)zoom

Attributes

Key Value
ConfigurationDual Common Cathode
Continuous Forward Curr.10 A
Dimensions10.51 x 4.65 x 15.25 mm
Diode TypeUltra Fast Rectifier
Family SeriesVishay Diodes
Forward Voltage1.15 V
Gross Weight0.0044 lbs
Height0.6" (15.25mm)
IF (avg) Amps20 A
Ifsm Amps100 A
Item NumberMUR2020CTPBF
Junction Capacitance55 pF
Junction Temperature-85-347 ?F
Lead Length FMS (inches)0.55 "
Length0.413 in
ManufacturerVishay
Manufacturer Part NumberVS-MUR2020CTPBF
Maximum Junction Temper.+175 ?C
Maximum Operating Tempe.+175 ?C
Minimum Operating Tempe.-65 ?C
Mounting Force10 lbf-inches
Mounting TypeThrough Hole
Net Weight0.0044 lbs
Non Repetitive On State.100 A
Number of Pins3
Operating Temperature-65 to +175 ?C
Package TypeTO-220AB
Peak Current250 ?A
Primary TypeRectifier
Product HeaderUltrafast Recovery Rect.
Recovery Time35 ns
Rectifier TypeSilicone
Repetitive Peak Voltage200 V
Resistance, Thermal, Ju.2.5 ?C/W
Reverse Recovery Time35 ns
RoHS CompliantYes
SeriesVS-MUR Series
Surge Current100 A
Switching SpeedUltrafast
Temperature Operating R.-65 to +175 ?C
trr (nanoseconds)35 ns
Vfm (Volts)0.85 V
Vrrm (Volts)200 V
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoMUR2020CTPBF-VISH0.741000135Vishay0.00440.74 @ 1000
us.rs-online.com700790051.243171000135Vishay PCS1.24317 @ 1000
thumbzoomDigi-KeyMUR2020CTPBF-ND1.71135Vishay Semiconductor Diodes Division1.7 @ 1
