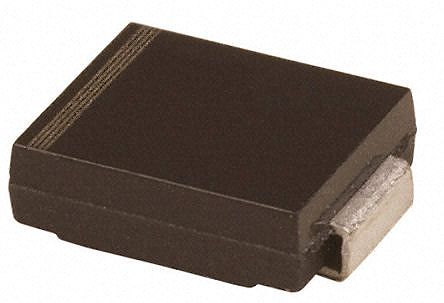

SMCJ28A-E3/57T

mpnSMCJ28A-E3/57T
brandname: VISHAY
manufacturername: VISHAY

TVS Diodes - Transient Voltage Suppressors 1500W 28V Unidirect (50 pieces)

PartNumber: SMCJ28A-E3/57T
Size: 50 Piece
PackageQuantity: 50
Manufacturer: Vishay Semiconductors
Label: Vishay Semiconductors

Attributes

Key	Value
Alternate Part No.	625-SMCJ28A-E3
Applications	General Purpose
Base Product Number	SMCJ28
Brand	Vishay Semiconductors, .
Breakdown voltage	32.75V
Breakdown Voltage	31.1 V to 34.4 V
Capacitance @ Frequency	-
Case	SMC
Category	Circuit Protection
Clamping Voltage	45.4 V
Current - Peak Pulse (1.	33A
Dimensions	Dimensions, 6.22 mm W x.
Diode Configuration	Single
Direction Type	Direction Type
Features of semiconduct.	glass passivated
Height	Height
Kind of package	reel,
Leakage current	1?A
Length	7.11mm
Manufacturer	VISHAY
Manufacturer Part No.	SMCJ28A-E3/57T
Manufacturer series	SMCJ
Max. forward impulse cu.	33A
Max. off-state voltage	28V
Maximum Clamping Voltage	45.4V
Maximum Operating Tempe.	+150 ?C, + 150 C
Maximum Peak Pulse Curr.	33A
Maximum Reverse Leakage.	1?A
Maximum Reverse Stand-o.	28V
Mfr	Vishay General Semicond.
Minimum Breakdown Volta.	31.1V
Minimum Operating Tempe.	- 55 C, -55 ?C
Mounting	SMD
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of Elements per .	1
Operating Temperature	-55?C ~ 150?C (TJ)
Operating Voltage	28 V
Package	Tape & Reel (TR)
Package / Case	DO-214AB, SMC
Package Type	SMC
Package/Case	DO-214AB
Packaging	Reel
Part # Aliases	SMCJ28A-E3/9AT
Peak Pulse Power Dissip.	1.5 kW, Peak Pulse Powe.
Peak pulse power dissip.	1.5kW
Peak Surge Current	33 A
Pin Count	Pin Count
Polarity	unidirectional
Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Product Category	TVS Diodes - Transient .
Product Status	Active
Semiconductor structure	unidirectional
Series	TransZorb?, SMCJ
Stock	Stock
Supplier Device Package	DO-214AB (SMCJ)
Technology	TransZorb?
Termination Style	SMD/SMT
Test Current	1mA
Tradename	TransZorb
Type	Zener
Type of diode	TVS
Unidirectional Channels	1
Voltage - Breakdown (Mi.	31.1V
Voltage - Clamping (Max.	45.4V
Voltage - Reverse Stand.	28V
Width	6.22mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Hotenda	H653018	0.242	850	10	Vishay Semiconductor/Diodes Division	0.242 @ 850
RS Delivers	919-4472	0.3096	850	1700	Vishay	0.3096 @ 850
TME	SMCJ28A-E3/57T	0.38	3	1231	VISHAY	0.38 @ 10
Newark	05R5841	0.41	1700	10	VISHAY	0.41 @ 1700
Verical	SMCJ28A-E3/57T	0.421	57	93	Vishay	0.421 @ 57
Digi-Key	3026277	0.6302	1	10	Vishay General Semiconductor - Diodes Division	0.6302 @ 10
swatee.com	SMCJ28A-E3/57T	2.11	1	1110	Vishay	2.11 @ 10
