GENERAL SEMICONDUCTOR (VISHAY) 36MT60

B0748MDV1C

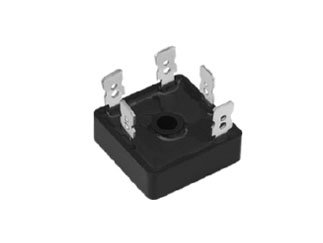

GENERAL SEMICONDUCTOR (VISHAY) 36MT60 36MT Series 600 V 475 A Quick Connect Three Phase Bridge Power Module - D-63 - 1 item(s)

GENERAL SEMICONDUCTOR (VISHAY) 36MT60 36MT Series 600 V 475 A Quick Connect Three Phase Bridge Power Module - D-63 - 1 item(s)zoom

Attributes

Key Value
Average Current35 A
Base Product Number36MT60
Bridge TypeThree Phase
CaseD-63
CategoryDiscrete Semiconductor .
ConfigurationThree Phase
Current - Average Recti.35 A
Current - Reverse Leaka.10 ?A @ 600 V
Current Squared Time Ra.1130 A sq. s
Dimensions28.5 x 28.5 x 10 mm
Diode TypePower Bridge Rectifier,.
Electrical mountingTHT
Family SeriesVishay Miscellaneous
Forward Current35 A
Forward Voltage1.19 V
Gross Weight0 lbs
Height0.394" (10mm)
Item NumberVS-36MT60
Kind of packageBulk
Leads6,3x0,8mm connectors
Length1.122 in
Load current35A
ManufacturerVISHAY
Manufacturer Part NumberVS-36MT60
Max. forward impulse cu.475A
Max. forward voltage1.19V
Max. off-state voltage600V
Maximum Junction Temper.+150 ?C
Maximum Operating Tempe.+150 ?C
MfrVishay General Semicond.
Minimum Operating Tempe.-55 ?C
Mounting TypeQC Terminal, Through Ho.
Net Weight0 lbs
Non Repetitive On State.500 A
Number of Pins5
Operating Temperature-55?C ~ 150?C (TJ), -55.
PackageBulk
Package / Case5-Square, D-63
Package TypeD 63
Peak Current100 ?A
Primary TypeBridge Rectifier
Product HeaderThree Phase Bridge Rect.
Product StatusActive
Repetitive Peak Voltage600 V
Resistance, Thermal, Ju.1.35 K/W
Reverse Current100 ?A
RMS Voltage725 V
Series-, VS-36MT Series
Supplier Device PackageD-63
Surge Current500 A
TechnologyStandard
Temperature Operating R.-55 to +150 ?C
Type of bridge rectifierthree-phase
Versionsquare
Voltage - Peak Reverse .600 V
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics20817186.38420145Vishay6.384 @ 20
TTIVS-36MT607.12100In StockVishay7.12 @ 100
thumbzoomGalcoVS-36MT60-VISH11.6220In StockVishay11.62 @ 20
us.rs-online.com7007876014.21In StockVishay PCS14.2 @ 1
HotendaH180351815.241164Vishay Semiconductor/Diodes Division15.24 @ 1
Mouser844-36MT6015.551In StockVishay15.55 @ 1
thumbzoomNewark98K888616.01413VISHAY16.0 @ 1
Digi-Key35790416.771In StockVishay General Semiconductor - Diodes Division16.77 @ 1
thumbzoomTMEVS-36MT6019.221In StockVISHAY19.22 @ 1
RS Delivers395-324421.5761In StockVishay21.576 @ 1
