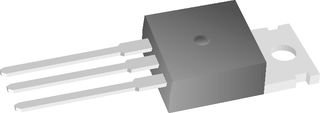

VISHAY SILICONIX IRFZ24PBF N CHANNEL MOSFET, 55V, 17A TO-220AB (100 pieces)

VISHAY SILICONIX IRFZ24PBF N CHANNEL MOSFET, 55V, 17A TO-220AB (100 pieces)zoom

Attributes

Key Value
Circuit TypeN-Channel
Current - Continuous Dr.17A (Tc)
Drain Current Id(rms)17 A
Drain Source Voltage Vds60 VDC
Drain to Source Voltage.60 V
Drive Voltage (Max Rds .10V
Fall Time tf42 ns
Family SeriesVishay Transistors, TO-.
FET Feature-
FET TypeN-Channel
Gate Charge (Qg) (Max) .25 nC @ 10 V
Gate Leakage Current0.1 ?A
Gate Source Voltage Vgss20 VDC
Gross Weight0 lbs
Input Capacitance (Ciss.640 pF @ 25 V
Item NumberIRFZ24PBF
ManufacturerVishay
Manufacturer Part NumberIRFZ24PBF
MfrVishay Siliconix
Mounting TypeThrough Hole
Net Weight0 lbs
Operating Temperature-55?C ~ 175?C (TJ)
PackageTO-220AB
Package / CaseTO-220-3
Part StatusActive
Power Dissipation (Max)60W (Tc)
Product SeriesTO-220
Rds On (Max) @ Id, Vgs100mOhm @ 10A, 10V
rDS(on)100 mOhm
Rise Time tr58 ns
RoHSYes
SeriesIRFZ Series, -
Supplier Device PackageTO-220AB
TechnologyMOSFET (Metal Oxide)
Trr88 ns
Turn Off Delay Time25 ns
Turn On Delay Time13 ns
Typ. Vgs(th)3 VDC
Vgs (Max)?20V
Vgs(th) (Max) @ Id4V @ 250?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com706158560.415210050Siliconix / Vishay0.4152 @ 100
Future Electronics53294530.6421700Vishay0.642 @ 50
thumbzoomGalcoIRFZ24PBF-VISH0.76100050Vishay0.76 @ 1000
HotendaH18228950.93811291Vishay/Siliconix0.938 @ 50
RS Delivers812-0672P1.97041210Vishay1.9704 @ 50
