WAGO 2092-1106/002-000

mpn2092-1106/002-000
brandname: WAGO
manufacturername: WAGO

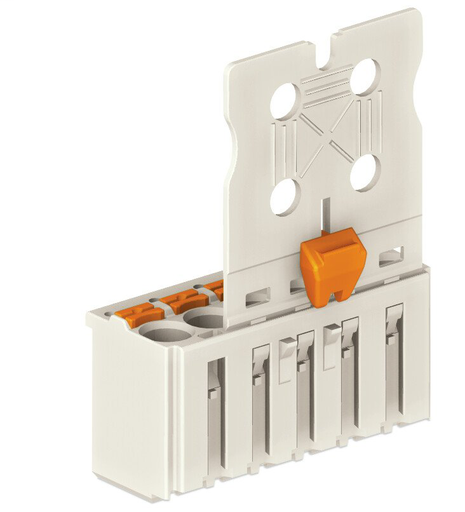

WAGO 2092-1106/002-000 PICO Max 6 Position 3.5 mm 24-12 AWG Female Connector - 5 item(s)

WAGO 2092-1106/002-000 PICO Max 6 Position 3.5 mm 24-12 AWG Female Connector - 5 item(s)

zoom

Brand: WAGO
PartNumber: 2092-1106/002-000
Model: 2092-1106/002-000
PackageQuantity: 1
Manufacturer: WAGO
Label: WAGO

Attributes

Key	Value
Actuation type	Push-button
Actuator	Push-button
Approvals	CB, CSA, cURus
Approvals per	CSA, UL 1059
Brand	WAGO
Catalog Number	2092-1106/002-000
Color	Light gray
Comments	Universal Connection of.
Conductor Range	12-24 AWG Conductor Ran.
Connection	Push-in CAGE CLAMP
Connection technology	Push-in CAGE CLAMP?
Connector (connection t.	For conductor
Connector Gender	Female
Contact Finish	Tin
Contact material	Electrolytic copper (EC.
Contact Material	Electrolytic Copper
Contact type (pluggable.	Female connector/socket
Country of Origin	Germany
Country of origin	DE
Current	15 A
Current Rating	16 A
Depth	14.4 mm / 0.567 inches,.
Depth UOM	Inch
Family Series	Wago Plugs & Receptacle.
Gross Weight	0 lbs
GTIN	4050821411741
Height	40.4?mm?/ 1.591?inch, 4.
Height UOM	Inch
Housing Type	None (Insert Only)
Insulation material	Polyphthalamide (PPA GF)
Item Number	2092-1106/002-000
Item Type	1-conductor female plug
Made in USA	No
Manufacturer	WAGO
Manufacturer Part Number	51255044
Material	Polyphthalamide (PPA GF)
Net Weight	0.0127 lbs
Number of connection ty.	1
Number of Contacts	6 Pole
Product Series	2092
Rated current	16 A
Rated Impulse Voltage	4 kV
RoHS Compliant	Yes
RoHS Indicator	Yes
Solid conductor	0.2 ? 2.5?mm??/ 24 ? 12.
Stripping Length	9-10 mm
Temperature	-60-100 ?C
Total number of connect.	6
Voltage	300 V
Voltage Rating	250
Weight	5.741 g, 5.741
Weight UOM	Grams
Width	1.181, 30?mm?/ 1.181?in.
Width UOM	Inch
Wire Size	24-12 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Platt.com	0326965	3.71	1	5		Wago		3.71 @ 5
	standardelectricsupply.com	2291665	3.9	1	5		Wago	0.0126302	3.9 @ 5
	Galco	2092-1106/002-000-WAGO	4.08	50	5		Wago	0.0127	4.08 @ 50
	crescentelectric.com	1072498	4.22	1	5		WAGO		4.22 @ 5
	Newark	54W3799	6.07	1	5		WAGO		6.07 @ 5
