WAGO 859-720

B002ID07PK

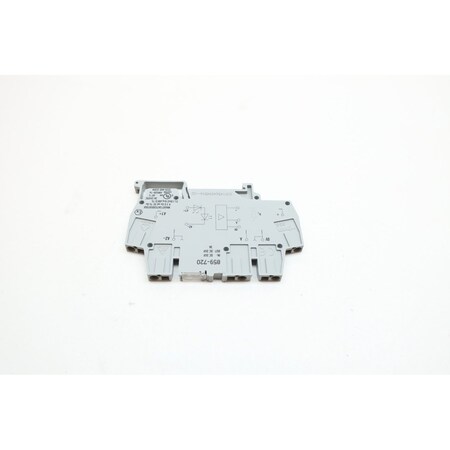

WAGO 859-720 Gray, LIMITING Continuous Current: 3 A, Nominal Input Voltage: 24 VDC, OPTOCOUPLER Module, Module Width: 6 MM, Output Voltage Range: 0 ? 24 VDC

WAGO 859-720 Gray, LIMITING Continuous Current: 3 A, Nominal Input Voltage: 24 VDC, OPTOCOUPLER Module, Module Width: 6 MM, Output Voltage Range: 0 ? 24 VDCzoom

Attributes

Key Value
Ambient temperature (op.-25 to +40?C
Ambient temperature (st.-40 to +70?C
ApprovalsUL
Bifurcated ContactNo
BrandWago
Catalog Number859-720
Circuit type3-wire connection || Lo.
Colorgray
Conductor Range14-28 AWG Conductor Ran.
ConnectionFixed|Terminals (Cage-c.
ContactsSPDT
Country of OriginGermany
Depth from upper-edge o.56 mm / 2.205 inches
Dielectric strength (co.2.5 kVrms
DimensionsH91mm x W6mm x D56mm|6m.
DiodeNo
Drop-out time (t90-10)20?s
EnclosurePlastic
Family SeriesWago Relays
Fine-stranded conductor0.08 to 2.5 mm? / 28 to.
Fire load0.538 MJ
Gross Weight0.115 lbs
GTIN4055143604802
Hazardous RatedNo
Height91 mm / 3.583 inches
Height UOMInch
Input voltage range (hi.DC 16 to 30 V
InsulationBasic insulation
Insulation type (adjace.Reinforced insulation (.
Item Number859-720
Item TypeSolid State Relay (SSR)
Leakage current at rate.?25?A
Made in USANo
ManufacturerWago
Manufacturer Part Number60335616
Max Current20 A
MountingDIN Rail
Mounting positionHorizontal (standing/ly.
Mounting TypeDIN-35 rail
Net Weight0.045 lbs
Nominal Coil Voltage24 VDC
Nominal input voltage UNDC 24 V
Number of Electrical Co.3
Operating altitude (max.2000 m
Output voltage rangeDC 10 to 30 V
Processing temperature-25 to +50?C
Product Group Code6
Published Coil Voltage24 VDC
RoHSYes
RoHS IndicatorYes
Safety GuidedNo
Status IndicatorYes
Strip length5 to 6 mm / 0.2 to 0.24.
Switching frequency?2 kHz (< 0.5 A; ?2 kHz.
Temperature range of co.?(Tambient + 20 K)
TerminationCage Clamp
Weight18.299
Weight UOMGrams
Width0.236, 6 mm / 0.236 inc.
Width UOMInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco859-720-WAGO40.711In StockWago0.11540.71 @ 1
thumbzoomcrescentelectric.com108400541.871In StockWAGO41.87 @ 1
Platt.com030440442.891In StockWago42.89 @ 1
thumbzoomZoroG20441693249.291In StockWago49.29 @ 1
Newark29K552357.741In StockWAGO57.74 @ 1
