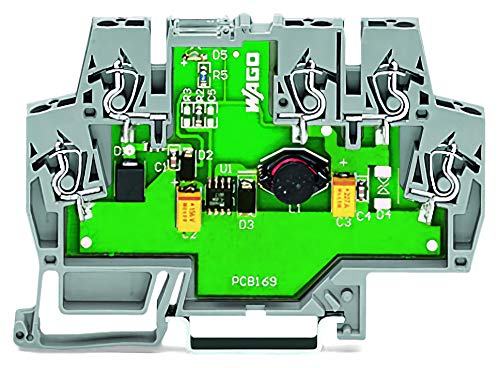

WAGO 859-805 DC-DC Conv, DIN Rail, 1 O/P, 500mA, 12V

WAGO 859-805 DC-DC Conv, DIN Rail, 1 O/P, 500mA, 12Vzoom

Attributes

Key Value
ApprovalsUL
BrandWago
Catalog Number859-805
Colorgray
Conductor Range14-28 AWG Conductor Ran.
ConnectionTerminals (Cage-clamp)
Country of OriginUnited States
Depth91 mm / 3.583 inches
Depth UOMInch
DimensionsH91mm x W6mm x D91mm
Efficiency %85 %
EncapsulatedNo
Family SeriesWago Power Supplies, 85.
Gross Weight0.08 lbs
GTIN4050821017486
Height91 mm / 3.583 inches
Height UOMInch
Input Voltage (DC)15-30 VDC
Item Number859-805
Item TypePower supply unit
Line Regulation %0.5 %
Load Regulation %0.7 %
Made in USAYes
ManufacturerWago
Manufacturer Part Number51225635
MountingDIN Rail
Net Weight0.055 lbs
Nominal Input Voltage (.24 VDC
Nominal Output VDC12 VDC
Number of Outputs1
Operating Temperature-13-131 ?F
Output Current0.5 A
Output VDC12 VDC
Output Voltage Adj.No
Overload ProtectionYes
Overvoltage ProtectionYes
Power Factor CorrectionNo
Product Series859
Remote On/Off ControlNo
Remote SensingNo
RoHSYes
RoHS IndicatorYes
Short Circuit ProtectionYes
Weight35
Weight UOMGrams
Width0.236
Width UOMInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco859-805-WAGO65.721In StockWago0.0865.72 @ 1
thumbzoomAutomation Direct859-80567.0165WAGO0.0867.0 @ 1
thumbzoomcrescentelectric.com108402867.61In StockWAGO67.6 @ 1
Platt.com029631669.231In StockWago69.23 @ 1
standardelectricsupply.com224810472.81In StockWago72.8 @ 1
thumbzoomNewark29K553994.17110WAGO94.17 @ 1
Onlinecomponents.com859-80599.111In StockWAGO99.11 @ 1
Verical859-805100.6311WAGO100.63 @ 1
Future Electronics8114781115.22410In StockWAGO115.224 @ 10
AmazonTPB005T971M2134.151In Stock2WAGO134.15 @ 1
