Walter AG F2234.W.040.Z04.06

B00J9XQMJW

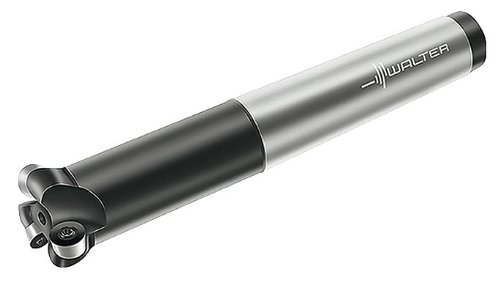

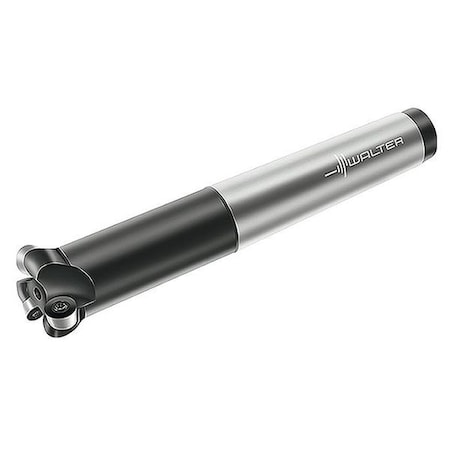

Walter AG - F2234.W.040.Z04.06 - Indexable Profiling End Mill, Max. Cutting Dia. 40.00mm, Depth of Cut 6.00mm, Shank Dia. 40.00mm

Walter AG - F2234.W.040.Z04.06 - Indexable Profiling End Mill, Max. Cutting Dia. 40.00mm, Depth of Cut 6.00mm, Shank Dia. 40.00mmzoom

Attributes

Key Value
ANSI CodeF2234.W.040.Z04.06
BrandWALTER
Catalog PageN/A
ClampFS1035
Clamp ScrewFS359 (Torx 15)
Compatible HardwareFS1035 Clamp, FS359 T15.
Coolant FedCoolant Through
Country of OriginChina
Country of Origin (subj.China
Cutter Dia.1.102"
Cutting ApplicationCircular Interpolation .
Cutting Edge TypeCarbide
Cutting Length0.236"
Depth of Cut6.00mm
Diameter1.102"
FeaturesAnti-Twist Protection a.
Head Dia.40.00mm
Head Projection Length149.00mm
IncludesFS1035 Clamp, FS359 T15.
Insert Holding TypeScrew
Insert ScrewFS359 Torx 15
Insert ShapeRound
Insert Size1204M0
Insert StyleRD..
ISO NumberF2234.W.040.Z04.06
ItemIndexable Profiling End.
Item?44V594
Left/Right HandRight
MaterialAll ISO
Max. Cutting Dia.40.00mm
Max. Speed26,300 RPM
Mfr. Model?F2234.W.040.Z04.06
NomenclatureF2234.W.040.Z04.06
Number of Coolant Holes1
Number of Inserts4
Number of Inserts Requi.4
Overall Length220.00mm
Overall Length (In.)8.661
SeriesF2234
Shank Dia.40.00mm
Shank Dia. (In.)1.575
Shank Length71.00mm
UNSPSC23171612

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger44V594608.21In StockWALTER608.2 @ 1
thumbzoomZoroG7940527687.491In StockWalter3.7687.49 @ 1
thumbzoomsustainablesupply.comC1418717699.451In StockWalter Tools3.7699.45 @ 1
thumbzoomRaptor SuppliesAD6CDT880.08072751In StockWALTER880.0807275 @ 1
