Walter AG F4047.B32.100.Z08.08

B01LW1PM4U

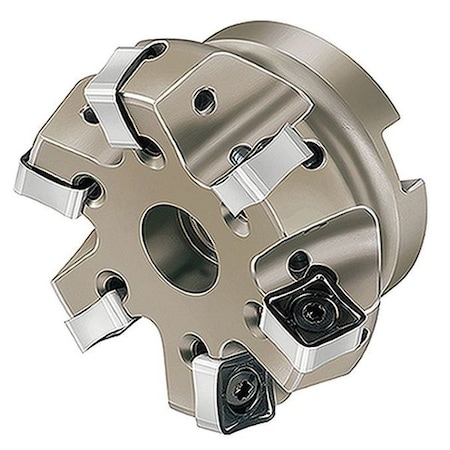

Walter AG - F4047.B32.100.Z08.08 - Indexable Face Mill, Max. Cutting Dia. 104.29mm, Depth of Cut 8.00mm

Walter AG - F4047.B32.100.Z08.08 - Indexable Face Mill, Max. Cutting Dia. 104.29mm, Depth of Cut 8.00mmzoom

Attributes

Key Value
ANSI CodeF4047.B32.100.Z08.08
Bore1.575"
Cutter Dia.3.937"
Cutting Edge TypeCarbide
Cutting Length0.315"
Depth of Cut8.00mm
Diameter3.937"
Hub Outside Dia.80.00mm
Insert Cutting Edge Len.8.00mm
Insert Holding TypeHexagon Socket Head Cap.
Insert ScrewFS1459 Torx 15 IP
ItemIndexable Face Mill
Left/Right HandRight
MaterialAll ISO
Max. Cutting Dia.104.29mm
NomenclatureF4047.B32.100.Z08.08
Number of Coolant Holes2
Number of Inserts8
Number of Inserts Requi.8
Overall Length50.00mm
Overall Length (In.)1.969
SeriesF4047
Shank Dia. (In.)1.26
Side Cutting Edge Angle0 Degrees

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG82968111113.991In StockWalter2.381113.99 @ 1
thumbzoomRaptor SuppliesAD6DBU1648.2029851In StockWALTER1648.202985 @ 1
