Walter Tools 23410-UNF10

mpn23410-UNF10
brandname: WALTER PROTOTYP
manufacturername: WALTER PROTOTYP

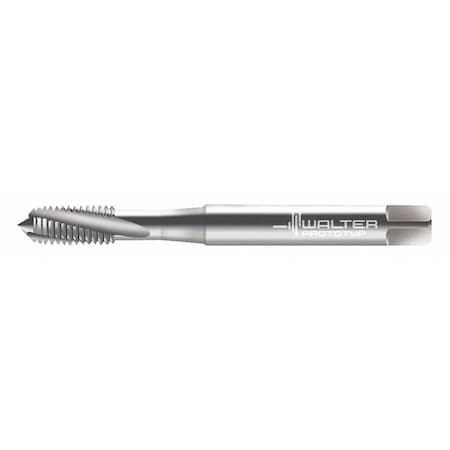

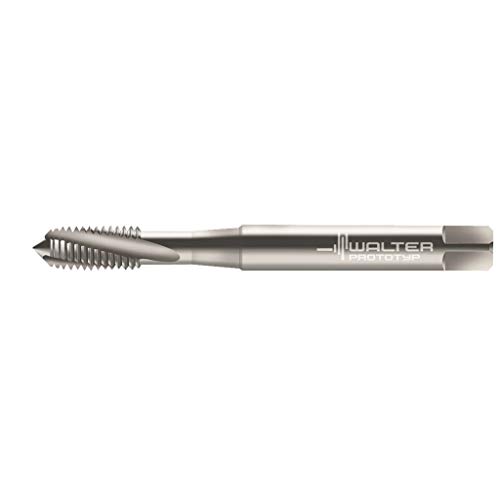

Walter Tools 23410-UNF10 Paradur HSS Machine Tap, Uncoated, 6 mm Shank Diameter, 8 mm Cutting Length, 70 mm Overall Length, No. 10-32 Cutting Diameter

Walter Tools 23410-UNF10 Paradur HSS Machine Tap, Uncoated, 6 mm Shank Diameter, 8 mm Cutting Length, 70 mm Overall Length, No. 10-32 Cutting Diameter

zoom

Brand: Walter Tools
PartNumber: 23410-UNF10
Model: 5078586
Size: No. 10-32
PackageQuantity: 1
Binding: Misc.
Manufacturer: Walter
Label: Walter

Attributes

Key	Value
55% Thread Drill Size	4.25 mm
65% Thread Drill Size	4.15 mm
75% Thread Drill Size	#21
Class of Fit	2B
Coolant Fed	Non-Coolant Through
Country of Origin (subj.	India
Cutting Direction - Mac.	Right Hand
Drill Bit Size	0.1610 in
Extended Neck	Yes
Helix Angle	15 Degrees
Item	Spiral Flute Tap
List Number	23410
Measurement System	Pipe
Number of Flutes	3
Number of Pieces	1
Overall Length	2-13/16"
Pitch Diameter Limit	2B
Primary Material Applic.	Aluminum, Brass, Bronze.
Primary Material Applic.	K, N, P
Series	Paradur N
Shank Dia.	1/4"
Shank Length	45.00 mm
Shank Type - Machining	Straight
Spiral Direction	Right Hand
Square Size	4.90mm
Standards	DIN 2184-1
Tap Chamfer	Plug
Tap Dimension Type	Inch
Tap Finish	Uncoated
Tap Material	High Speed Steel
Tap Shank Standard	DIN 2184-1
Tap Size	#10
Tap Style	Spiral Flute
Tap Thread Size	#10-32
Tap Thread Type	UNF
Thread Direction	Right Hand
Thread Length	5/16"
Thread Limit	H2, H3
Thread Limit / Class of.	H3 / 2B
Thread Size	#10-32
Thread Standard	UNF
Threads per Inch	32

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2555030	43.79	1	In Stock		Walter Prototyp	0.01	43.79 @ 1
