mpn:
brand:
manufacturer:
MPN:
Weight:
0.003125
Weight:
0.003125 LB
Preferred Price:
149.52
Price:
149.52
Min Simple Price:
81.71
Absolute Min Price:
116.02
Min Price:
116.02
Dimensions:
[5.0, 1.0, 1.0]
qty:
21
simpleSku:
NDg2MQ:::23466-UNF7/16
sku:
NDg2MQ::XM:23466-UNF7/16@y0
condition:
11
seller:
Zoro
amzMan:
walter
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| 55% Thread Drill Size | 10.20 mm |
| 65% Thread Drill Size | 10.00 mm |
| 75% Thread Drill Size | 9.95mm |
| Class of Fit, Pitch Diameter Limit | 2B |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subject to change) | Germany |
| Cutting Direction - Machining, Spiral Direction, Thread Direction | Right Hand |
| Drill Bit Size | 0.3900 in |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Helix Angle | 15 Degrees |

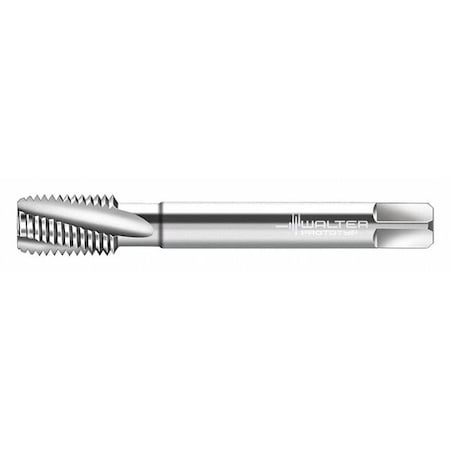

| Item | Spiral Flute Tap |
| List Number | 23466 |
| Measurement System | Fractional Inch |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Overall Length | 3-15/16" |
| Primary Material Application | Nickel, Steel, Titanium |
| Primary Material Application ISO Code | P, S |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Secondary Material Application ISO Code | N |
| Series | Paradur Ti |
| Shank Dia. | 5/16" |
| Shank Length | 15/16 in |
| Shank Type - Machining | Straight |
| Square Size | 0.2440 in |
| Standards, Tap Shank Standard | DIN 2184-1 |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Finish | Uncoated |
| Tap Material | High Speed Steel |
| Tap Size | 7/16" |
| Tap Style | Spiral Flute |
| Tap Thread Size, Thread Size | 7/16"-20 |
| Tap Thread Type, Thread Standard | UNF |
| Thread Length | 13/16" |
| Thread Limit | H4, H5 |
| Thread Limit / Class of Fit | H4 / 2B, H5 / 2B |
| Threads per Inch | 20 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G2555259 | 81.71 | 81.71 | 1 | In Stock | Walter Prototyp | 0.05 | 81.71 @ Qty: 1+ |
