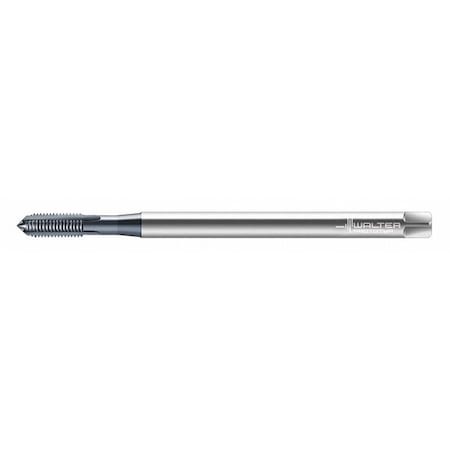

Walter Tools E2031436-M6

Key	Value
55% Thread Drill Size	5.25 mm
65% Thread Drill Size	13/64 in
75% Thread Drill Size	5.00 mm
Coolant Fed	Non-Coolant Through
Country of Origin (subject to change)	Germany
Cutting Direction - Machining	Right Hand
Extended Neck	Yes
Extended Shank	Yes
Helix Angle	0 Degrees
Item	Straight Flute Hand Tap
List Number	E2031436
Material Grade - Machining	TiCN
Measurement System	Metric
Number of Flutes	4
Number of Pieces	1
Overall Length	162.50mm
Pitch Diameter Limit	6HX
Primary Material Application	Aluminum, Brass, Bronze, Cast Iron, Composite, Copper
Primary Material Application ISO Code	K, N, O
Series	Paradur Eco CI
Shank Dia.	6.00mm
Shank Length	130.00 mm
Spiral Direction	Neutral
Square Size	4.90 mm
Standards	DIN371 XL
Tap Chamfer	Plug
Tap Dimension Type	Metric
Tap Finish	TiCN
Tap Length Standard	DIN 371 XL
Tap Material	High Speed Steel
Tap Shank Standard	DIN 371 XL
Tap Size	M6
Tap Style	Straight Flute (Hand)
Tap Thread Size	M6-1.00
Tap Thread Type	Metric Coarse
Tap Type	Straight Flute
Thread Direction	Right Hand
Thread Length	15.00mm
Thread Limit	6HX
Thread Pitch	1.00mm
Thread Size	M6x1
Thread Standard	Metric Coarse

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2508803	71.39	1	In Stock		Walter Prototyp	0.04	71.39 @ 1
